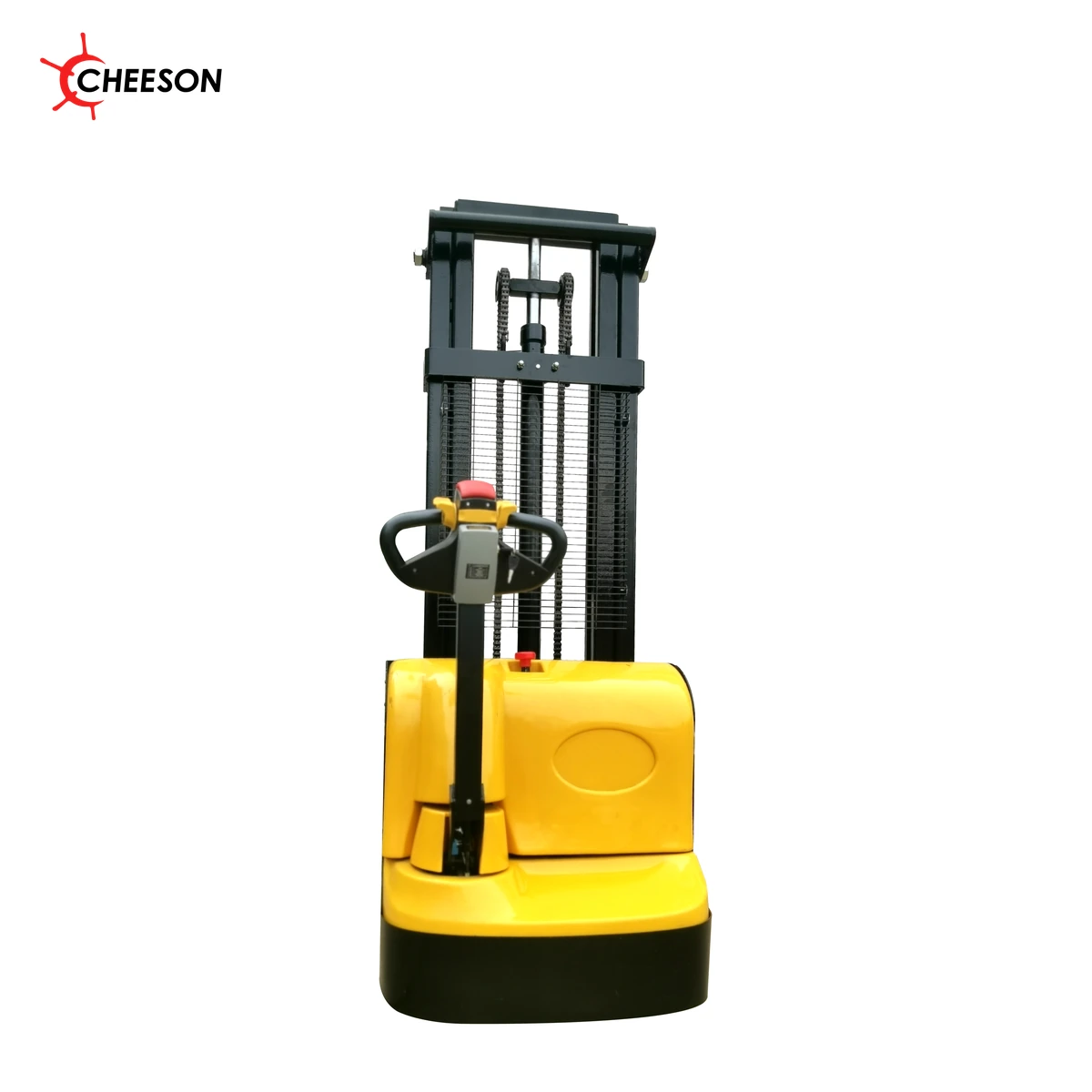

The CHEESON CDD10/CDD15 walkie electric stacker sheet lists 1,000/1,500 kg load-capacity alternatives and lifting heights of 1,600, 2,000, 2,500 or 3,000 mm. The source specifies a 500 mm load center, 1,100 mm fork length and 680 mm fork width. It also records battery, charger, lift-motor and drive-motor entries for the documented configuration.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CDD10/CDD15 |
|---|---|---|---|
| Load Capacity | — | kg | 1000/1500 |
| Lifting height | — | mm | 1600/2000/2500/3000 |
| Load centre Distce | — | mm | 500 |
| Sigle fork width | — | mm | 170 |
| For width | — | mm | 680 |
| Min fork height | — | mm | 85 |
| Fork length | — | mm | 1100 |
| Size of driving wheel | — | mm | 250*80 |
| Turning radius | — | mm | 1350 |
| Front wheel size,quantity | — | mm | 80*70/4 |
| Balance wheel size,quantity | — | mm | 125*50/2 |
| Overall length | — | mm | 2000 |
| Overall width | — | mm | 800 |
| Extended mast height | — | mm | 4000 |
| Lowered mast height | — | mm | 2080/1680/1880/2080 |
| Battery capacity | — | v/ah | 24V/80Ah(customizable) |
| The charger | — | V/A | 24V15A |
| Lifting motor | — | Kw | 2.2 |
| Driving motor | — | Kw | 0.75 |
| Lifitng speed (Full load/Empty load) | — | mm/s | 35/23 |
| Driving speed(Full load/Empty load) | — | Km/h | 4.5/5.8 |
Download the editable English specification
Selecting a configuration
Provide the load, load center, pallet dimensions, required lift height and available aisle width. Confirm the mast and battery combination in the quotation. Combined source values remain combined in this series table; they are not silently assigned to an unverified individual configuration.
Frequently asked questions
Which models are included in this series?
CDD10/CDD15. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
