CHEESON manual hydraulic stackers are documented in the WMS500-1600, WMS1000, WMS1500 and WMS2000-1600 series. The supplied English table lists capacities of 500, 1,000, 1,500 and 2,000 kg. Lift height, mast height and fork-width choices vary across the models. The multi-height alternatives remain in the same sequence as the supplied table.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | WMS500-1600 | WMS1000 | WMS1500 | WMS2000-1600 |
|---|---|---|---|---|---|---|
| Rated Capacity | Q | kg | 500 | 1000 | 1500 | 2000 |
| Load Center | C | mm | 600 | 600 | 600 | 600 |
| Lifting Height | h | mm | 1600 | 1600 / 2000 / 2500 / 3000 | 1600 / 2000 / 2500 / 3000 | 1600 |
| Mast Lowered Height | H | mm | 1970 | 2020 / 1500 / 1770 / 2020 | 2070 / 1500 / 1770 / 2020 | 2110 |
| Mast Extended Height | H1 | mm | 1970 | 2020 / 2510 / 3010 / 3510 | 2070 / 2510 / 3010 / 3510 | 2110 |
| Mast Type | — | — | S | S / D / D / D | S / D / D / D | S |
| Lowered Fork Height | h1 | mm | 95 | 90 | 90 | 90 |
| Fixed Fork Outside Width | W | mm | 560 / 680 | 560 / 680 | 560 / 680 | — |
| Optional Adjustable Fork Range | — | mm | 230–870 / 230–680 | 230–870 / 230–680 | 230–870 / 230–680 | 230–870 / 230–680 |
| Fork Length | l | mm | 1150 | 1150 | 1150 | 1150 |
| Overall Width | W2 | mm | 780 | 780 / 870 / 870 / 870 | 780 / 870 / 870 / 870 | 780 |
| Overall Length | L | mm | 1650 | 1650 | 1650 | 1650 |
| Lifting Speed | — | mm/stroke | ≥16 | ≥16 | ≥16 | ≥16 |
| Lowering Speed | — | — | Controllable | Controllable | Controllable | Controllable |
| Turning Radius | Wr | mm | 1590 | 1590 / 1600 / 1600 / 1600 | 1590 / 1600 / 1600 / 1600 | 1590 |
| Wheel Material | — | — | PU / Nylon | PU / Nylon | PU / Nylon | PU / Nylon |
| Steering Wheel Size | ØD | mm | Ø180×50 | Ø180×50 | Ø180×50 | Ø180×50 |
| Load Wheel Size | Ød | mm | Ø80×60 | Ø80×60 | Ø80×60 | Ø80×60 |
Download the editable English specification
Selecting a configuration
Select the model by the actual load, load center, required fork height and pallet design. Confirm fixed or adjustable forks, lowered mast height and wheel material. Do not select a mast option solely from the appearance of the shared series photograph.
Frequently asked questions
Which models are included in this series?
WMS500-1600, WMS1000, WMS1500, WMS2000-1600. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?

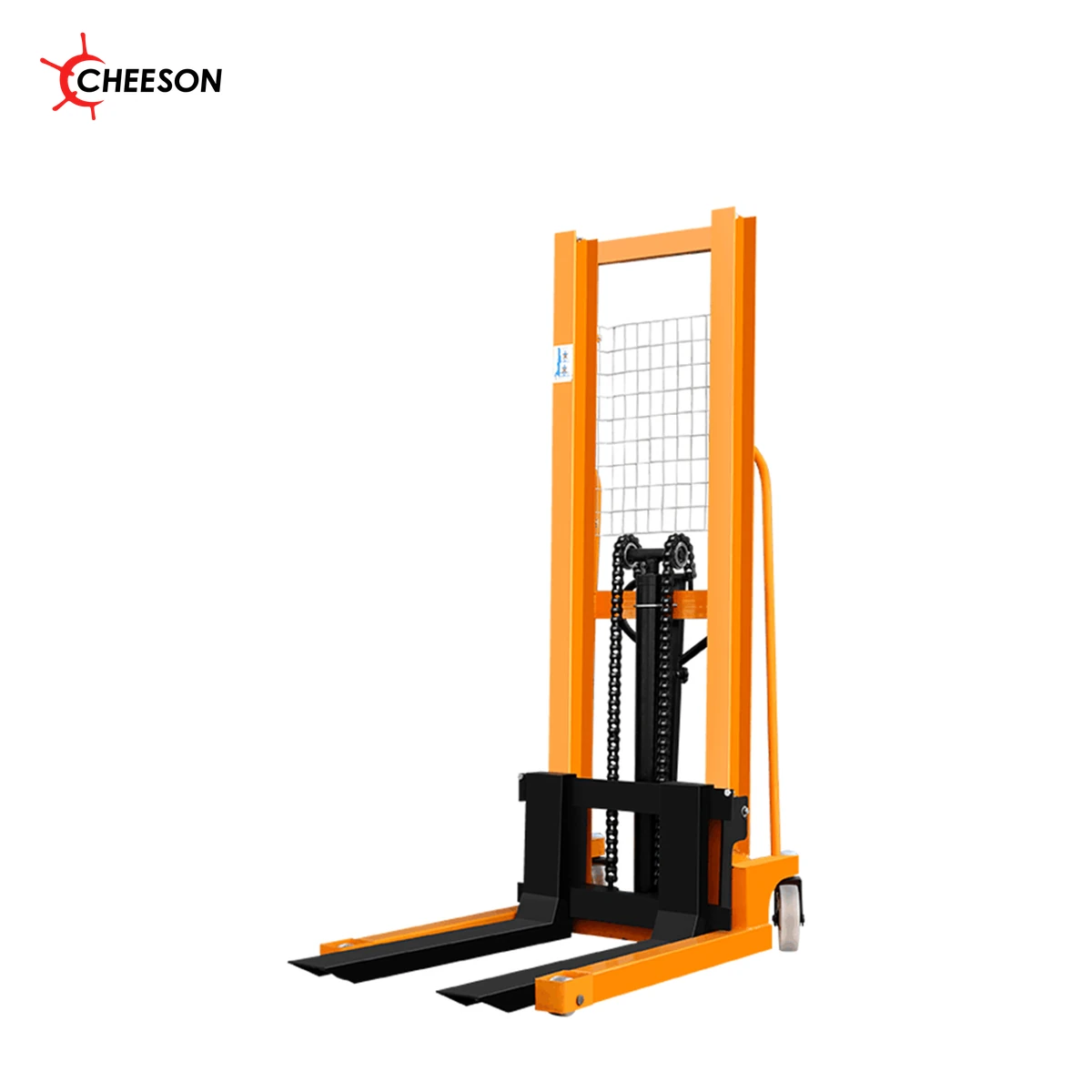

Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
