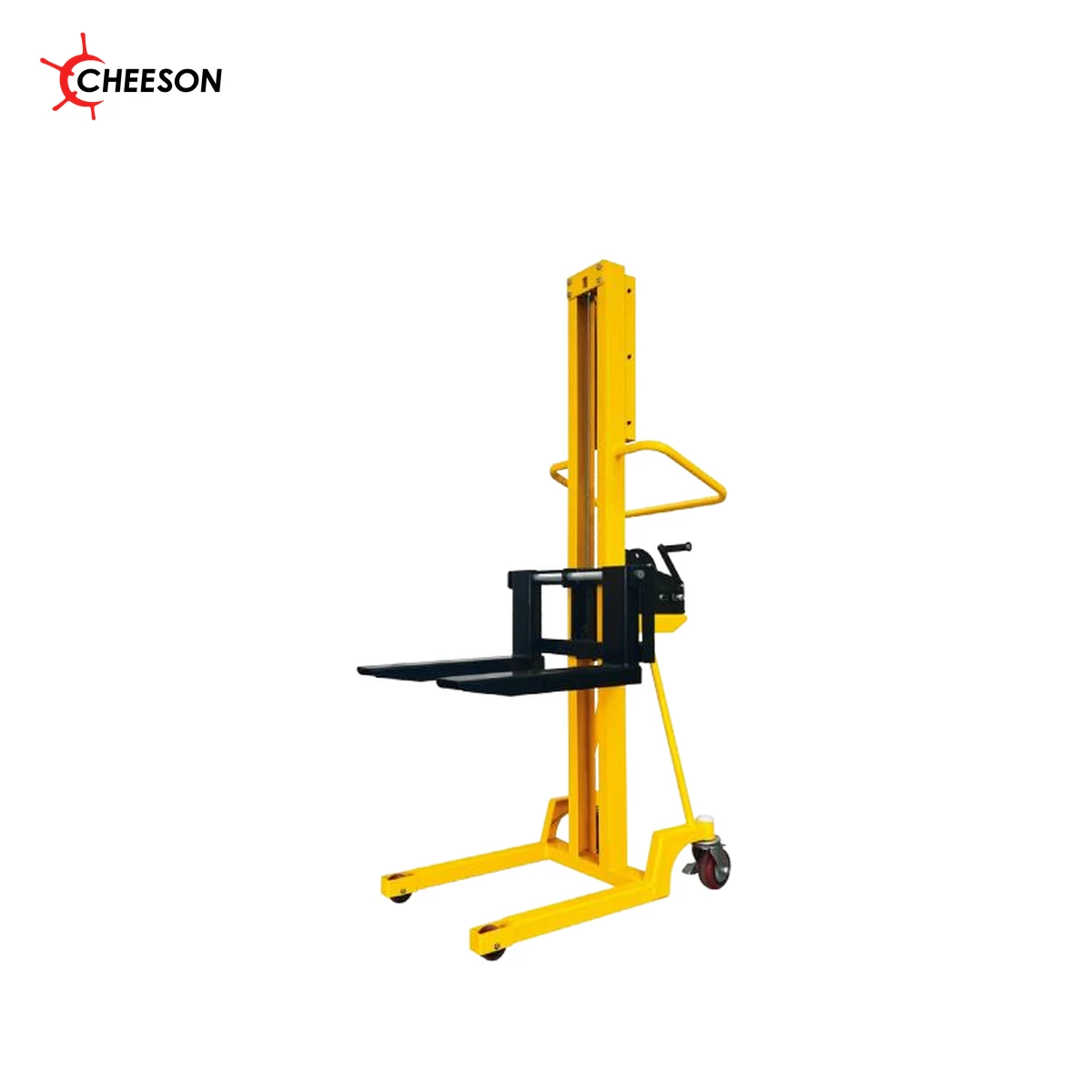

CHEESON mini winch stackers are listed as SDJW1100, SDJW1300 and SDJW1500. All three entries specify a 500 kg rated load, a 250 mm load center, 85 mm minimum fork height and 550 mm fork length. Maximum fork heights are 1,100, 1,300 and 1,500 mm, with corresponding net weights of 87, 90 and 93 kg.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | SDJW1100 | SDJW1300 | SDJW1500 |
|---|---|---|---|---|---|
| Load Capacity | — | kg | 500 | 500 | 500 |
| Load Center Distance | — | mm | 250 | 250 | 250 |
| Fork Min.Height | — | mm | 85 | 85 | 85 |
| Fork Max.Height | — | mm | 1100 | 1300 | 1500 |
| ForkLength | — | mm | 550 | 550 | 550 |
| Owerall Fork Width | — | mm | 550 | 550 | 550 |
| Net Weight | — | kg | 87 | 90 | 93 |
Download the editable English specification
Selecting a configuration
Compare the required lifting position with the listed maximum fork height. Provide load dimensions, the working area and the intended use when requesting a quotation. The supplied table does not establish optional motors, wheel materials or additional accessories.
Frequently asked questions
Which models are included in this series?
SDJW1100, SDJW1300, SDJW1500. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
