CHEESON CQD15Y, CQD20Y and CQD25Y stand-on reach trucks are listed with rated capacities of 1,500, 2,000 and 2,500 kg. The supplied table records electric drive, stand-on operation, PU wheels and electromagnetic braking. It differentiates wheelbase, service weight, overall length, aisle requirements, turning radius and battery capacity by model.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CQD15Y | CQD20Y | CQD25Y |
|---|---|---|---|---|---|
| Drive Type | — | — | Electric | Electric | Electric |
| Operator Type | — | — | Stand-on | Stand-on | Stand-on |
| Rated Capacity | Q | kg | 1500 | 2000 | 2500 |
| Load Center | C | mm | 500 | 500 | 500 |
| Wheelbase | — | mm | 1440 | 1590 | 1890 |
| Service Weight incl. Battery | — | kg | 1574 | 1750 | 2000 |
| Tyre | — | — | PU | PU | PU |
| Drive Wheel Size | — | mm | Ø250×80 | Ø250×80 | Ø250×80 |
| Front Wheel Size | — | mm | Ø200×80 | Ø200×80 | Ø200×80 |
| Wheel Quantity (Drive + Front) | — | — | 1x + 2 | 1x + 2 | 1x + 2 |
| Front Track Width | — | mm | 840 | 840 | 840 |
| Lift Height Options | — | mm | 1600 / 2000 / 2500 / 3000 / 3500 | 1600 / 2000 / 2500 / 3000 / 3500 | 1600 / 2000 / 2500 / 3000 / 3500 |
| Extended Mast Height Options | — | mm | 2080 / 2560 / 3060 / 3560 / 4060 | 2080 / 2560 / 3060 / 3560 / 4060 | 2080 / 2560 / 3060 / 3560 / 4060 |
| Lowered Fork Height | — | mm | ≤60 | ≤60 | ≤60 |
| Handle Height (Max / Min) | — | mm | 1540 / 1090 | 1540 / 1090 | 1540 / 1090 |
| Overall Length | — | mm | 2440 | 2590 | 2890 |
| Overall Width | — | mm | 1030 | 1030 | 1030 |
| Fork Dimensions | — | mm | 100 / 35 / 1070 | 100 / 35 / 1070 | 100 / 35 / 1070 |
| Fork Outside Width | — | mm | 660 | 660 | 660 |
| Ground Clearance | — | mm | 60 | 60 | 60 |
| Aisle Width for 1000×1200 Pallet | — | mm | 3300 | 3500 | 3900 |
| Turning Radius | — | mm | 1720 | 1870 | 2170 |
| Travel Speed, Laden / Unladen | — | km/h | 4.5 / 5.5 | 4.5 / 5.5 | 4.5 / 5.5 |
| Max. Lift Speed, Unladen | — | mm/s | 100 | 100 | 100 |
| Max. Lift Speed, Laden | — | mm/s | 70 | 70 | 70 |
| Gradeability, Laden / Unladen | — | % | 5 / 7 | 3 / 5 | 3 / 5 |
| Brake | — | — | Electromagnetic | Electromagnetic | Electromagnetic |
| Mast Material | — | — | 12C+12H | 12C+12H | 12C+12H |
| Drive Motor | — | kW | AC 2.2 | AC 2.2 | AC 2.2 |
| Lift Motor | — | kW | DC 2.2 | DC 2.2 | DC 2.2 |
| Battery Voltage / Capacity | — | V/Ah | 24V / 180Ah | 24V / 210Ah | 24V / 210Ah |
| Steering Type | — | — | Vertical Electric Power Steering | Vertical Electric Power Steering | Vertical Electric Power Steering |
Download the editable English specification
Selecting a configuration
Compare the required load, pallet dimensions and working aisle, then select the mast-height configuration. The source contains grouped mast options; request the final lowered/extended mast-height pairing for the quoted lift height. No missing height or speed value has been invented.
Frequently asked questions
Which models are included in this series?
CQD15Y, CQD20Y, CQD25Y. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?

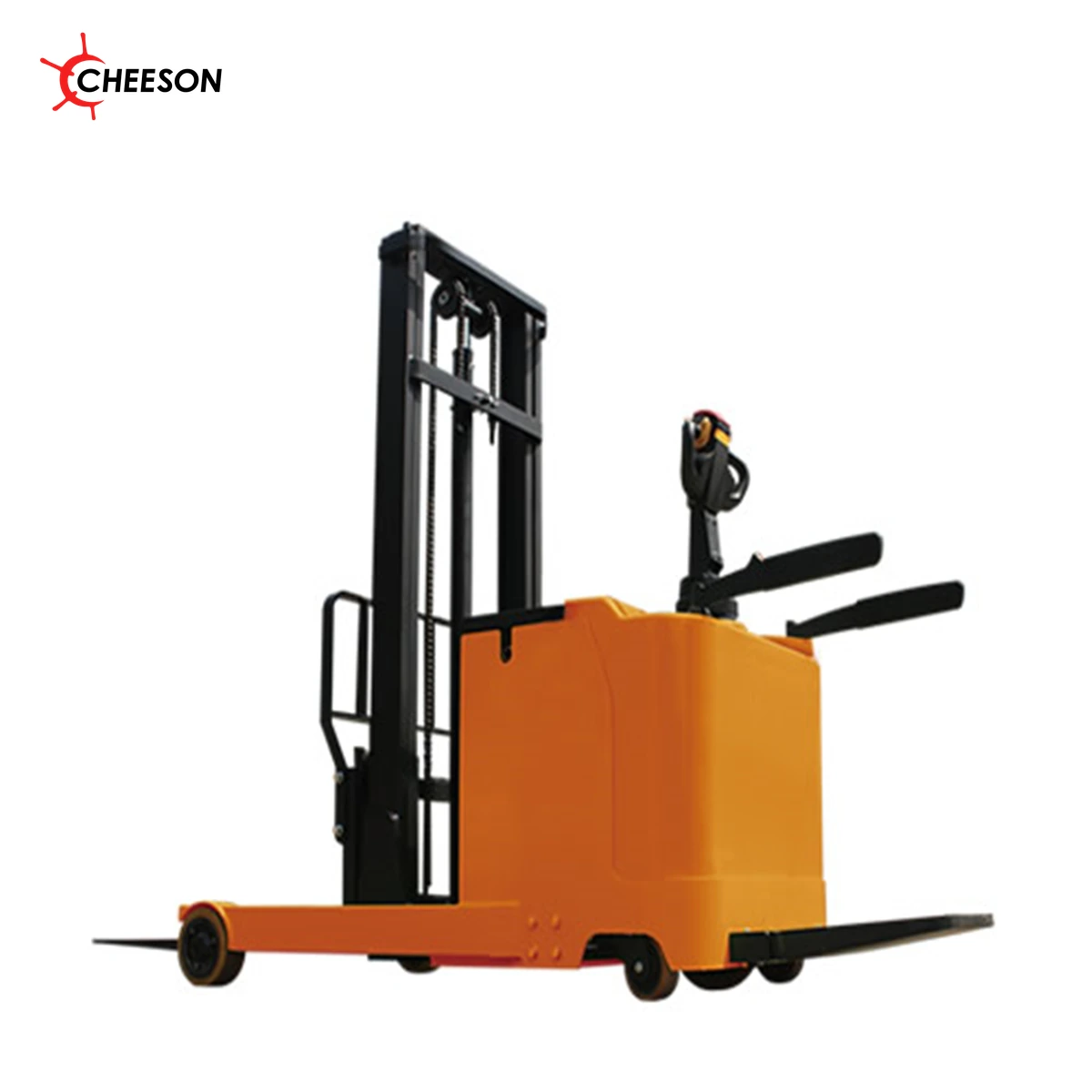

Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
