The CHEESON four-directional reach stacker folder contains two distinct supplied configurations. The three-point table covers CCD-15A, CCD-20A, CCD-25A and CCD-30A; their stated loads are 1,500, 2,000, 2,500 and 2,800 kg. The four-point table covers CCD-13 and CCD-16 at 1,300 and 1,600 kg. Both tables are provided separately so their mast, drive and battery details are not mixed.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
3-Point Configuration
| Parameter | Symbol | Unit | CCD-15A | CCD-20A | CCD-25A | CCD-30A |
|---|---|---|---|---|---|---|
| Drive Type | — | — | Electric | Electric | Electric | Electric |
| Rated Capacity | Q | kg | 1500 | 2000 | 2500 | 2800 |
| Overall Length | L | mm | 1607 | 1607 | 1607 | 1607 |
| Front Wheel Width | T1 | mm | 1192 | 1192 | 1192 | 1192 |
| Chassis Width | T2 | mm | 1550 | 1550 | 1550 | 1550 |
| Max. Width (Extended / Retracted) | T3/T4 | mm | 2690 / 1850 | 2690 / 1965 | 2690 / 1965 | 2690 / 1965 |
| Mast Height, Lowered | h1 | mm | 2113 | 2113 | 2113 | 2113 |
| Max. Working Height | h2 | mm | 3613 | 3613 | 3613 | 3613 |
| Load Platform Height | h3 | mm | 370 | 370 | 370 | 370 |
| Load Wheel Size | — | mm | (125×50)×2 | (125×50)×2 | (125×50)×2 | (125×50)×2 |
| Drive Wheel Size | — | mm | 250×80 | 250×80 | 250×127 | 250×80 |
| Wheelbase | A | mm | 1294 | 1294 | 1294 | 1294 |
| Front Track Width | B | mm | 1090 | 1090 | 1090 | 1090 |
| Ground Clearance under Mast, Unladen/Laden | K1 | mm | 105 / 105 | 105 / 105 | 105 / 105 | 105 / 105 |
| Ground Clearance, Chassis Center, Unladen/Laden | K2 | mm | 75 / 75 | 75 / 75 | 75 / 75 | 75 / 75 |
| Standard Max. Lift Height, Unladen | h4 | mm | 3000 | 3000 | 3000 | 3000 |
| Full Free Lift Height | h5 | mm | 170 | 170 | 0 | 0 |
| Mast Material | — | — | 12C+12H | 12H×2 | 14C+14J | 16C+16J, dual cylinder |
| Mast / Fork Tilt, Front / Rear | — | ° | / | / | / | / |
| Mast Reach Distance | — | mm | 750 | 750 | 750 | 750 |
| Fork Dimensions | — | mm | 1070×100×35 | 1070×122×40 | 1070×122×40 | 1070×125×45 |
| Max. Adjustable Fork Outside Width, Standard / Custom | — | mm | 700 / 1950 | 700 / 1950 | 700 / 1950 | 700 / 1950 |
| Service Weight, Standard Unladen | — | kg | 2000 | 2280 | 2615 | 2950 |
| Max. Lift Speed, Unladen | — | mm/s | 115 | 115 | 115 | 115 |
| Max. Lift Speed, Laden | — | mm/s | 85 | 85 | 85 | 85 |
| Max. Lowering Speed, Unladen | — | mm/s | 70 | 70 | 70 | 70 |
| Max. Lowering Speed, Laden | — | mm/s | 125 | 125 | 125 | 125 |
| Turning Radius | R | mm | 1790 | 1790 | 1790 | 1790 |
| Max. Travel Speed, Unladen | — | km/h | 6 | 6 | 6 | 6 |
| Max. Travel Speed, Laden | — | km/h | 6 | 6 | 6 | 6 |
| Max. Gradeability, Unladen / Laden | — | % | 5 / 8 | 5 / 8 | 5 / 8 | 5 / 8 |
| Load Center | M | mm | 500 | 500 | 500 | 500 |
| Battery Type | — | — | Lead-acid | Lead-acid | Lead-acid | Lead-acid |
| Battery Voltage / Capacity | — | V/Ah | 24V / 210Ah | 24V / 240Ah | 24V / 240Ah | 24V / 280Ah |
| Drive Motor Rated Power | — | kW | 2.2 | 3 | 3 | 4.5 |
| Lift Motor Rated Power | — | kW | 2.2 | 2.2 | 3 | 4.2 |
| Max. Reach Speed, Unladen / Laden | — | mm/s | 160 | 160 | 160 | 160 |
4-Point Configuration
| Parameter | Symbol | Unit | CCD-13 | CCD-16 |
|---|---|---|---|---|
| Drive Type | — | — | Electric | Electric |
| Rated Capacity | Q | kg | 1300 | 1600 |
| Overall Length | L | mm | 1400 | 1400 |
| Front Wheel Width | T1 | mm | 1320 | 1320 |
| Chassis Width | T2 | mm | 1550 | 1550 |
| Max. Width (Extended / Retracted) | T3/T4 | mm | 2470 / 1650 | 2470 / 1650 |
| Mast Height, Lowered | h1 | mm | 2060 | 2060 |
| Max. Working Height | h2 | mm | 3880 | 3880 |
| Load Platform Height | h3 | mm | 437 | 437 |
| Load Wheel Size | — | mm | (125×50)×2 | (125×50)×2 |
| Drive Wheel Size | — | mm | 250×80×2 | 250×80×2 |
| Wheelbase | A | mm | 960 | 960 |
| Front Track Width | B | mm | 1204 | 1204 |
| Rear Track Width | — | mm | 1204 | 1204 |
| Ground Clearance under Mast, Unladen/Laden | K1 | mm | 105 / 105 | 105 / 105 |
| Ground Clearance, Chassis Center, Unladen/Laden | K2 | mm | 75 / 75 | 75 / 75 |
| Max. Lift Height, Unladen | h4 | mm | 3000 | 3000 |
| Full Free Lift Height | h5 | mm | 160 | 160 |
| Mast Material | — | — | 12C+12H | 12C+12H |
| Mast / Fork Tilt, Front / Rear | — | ° | / | / |
| Mast Reach Distance | — | mm | 820 | 820 |
| Fork Dimensions | — | mm | 1070×100×35 | 1070×122×40 |
| Max. Adjustable Fork Outside Width, Standard / Custom | — | mm | 700 / 1950 | 700 / 1950 |
| Service Weight, Standard Unladen | — | kg | 1850 | 2070 |
| Max. Lift Speed, Unladen | — | mm/s | 115 | 115 |
| Max. Lift Speed, Laden | — | mm/s | 85 | 85 |
| Max. Lowering Speed, Unladen | — | mm/s | 70 | 70 |
| Max. Lowering Speed, Laden | — | mm/s | 125 | 125 |
| Turning Radius | R | mm | 1790 | 1790 |
| Max. Travel Speed, Unladen | — | km/h | 6 | 6 |
| Max. Travel Speed, Laden | — | km/h | 6 | 6 |
| Max. Gradeability, Laden | — | % | 8 | 8 |
| Load Center | M | mm | 500 | 500 |
| Battery Type | — | — | LiFePO4 | LiFePO4 |
| Battery Voltage / Capacity | — | V/Ah | 25.6V / 210Ah | 25.6V / 240Ah |
| Drive Motor Rated Power | — | kW | 1.5×2 | 1.5×2 |
| Lift Motor Rated Power | — | kW | 2.2 | 2.2 |
| Max. Reach Speed, Unladen / Laden | — | mm/s | 160 | 160 |
Download the editable English specification
Selecting a configuration
Select the support configuration and full model code before comparing dimensions. Check the load center, required lifting height, reach distance, fork adjustment and battery package. The CCD-30A source rating remains 2,800 kg; the model name has not been used to infer a different rating.
Frequently asked questions
Which models are included in this series?
CCD-15A, CCD-20A, CCD-25A, CCD-30A, CCD-13, CCD-16. Confirm the complete model and configuration when requesting a quotation.

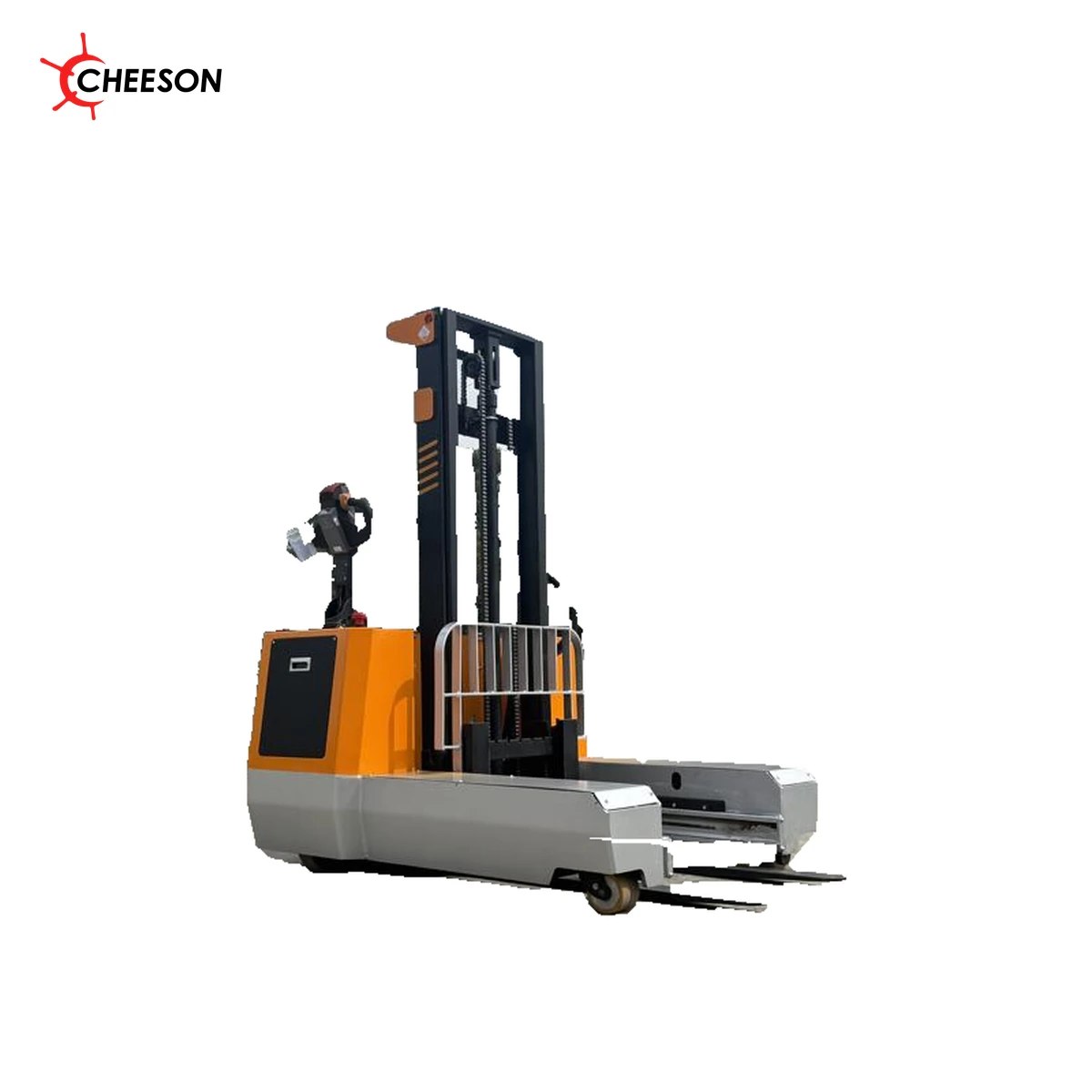

Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
