The CHEESON light manual platform stacker range is organized into ME-C platform, ME-F fixed-fork and ME-G adjustable-fork versions. The supplied comparison covers the 2085, 2120, 4085, 4120 and 4150 groups, with 200 or 400 kg rated-load entries and maximum heights from 850 to 1,500 mm. Platform and fork dimensions are configuration-specific.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | ME-2085 | ME-2120 | ME-4085 | ME-4120 | ME-4150 |
|---|---|---|---|---|---|---|---|
| Platform Type Model | — | — | ME-C2085 | ME-C2120 | ME-C4085 | ME-C4120 | ME-C4150 |
| Fixed Fork Type Model | — | — | ME-F2085 | ME-F2120 | ME-F4085 | ME-F4120 | ME-F4150 |
| Adjustable Fork Type Model | — | — | ME-G2085 | ME-G2120 | ME-G4085 | ME-G4120 | ME-G4150 |
| Rated Load Capacity | Q | kg | 200 | 200 | 400 | 400 | 400 |
| Maximum Fork / Platform Height | H | mm | 850 | 1200 | 850 | 1200 | 1500 |
| Minimum Fork Height (ME-F / ME-G) | H1 | mm | 85 | 85 | 85 | 85 | 85 |
| Minimum Platform Height (ME-C) | H1 | mm | 200 | 200 | 200 | 200 | 200 |
| Fork / Platform Length | L1 | mm | 600 | 600 | 650 | 650 | 650 |
| Fixed Fork Width (ME-C / ME-F) | W | mm | 500 | 500 | 550 | 550 | 550 |
| Adjustable Fork Width (ME-G) | W | mm | 215–500 | 215–500 | 235–500 | 235–500 | 235–500 |
| Total Height (ME-F / ME-G) | H2 | mm | 1080 | 1436 | 1060 | 1410 | 1710 |
| Total Height (ME-C) | H2 | mm | 960 | 1310 | 970 | 1310 | 1610 |
| Total Width | B | mm | 560 | 560 | 590 | 590 | 590 |
| Total Length (ME-F / ME-G) | L | mm | 1000 | 960 | 1040 | 1040 | 1040 |
| Total Length (ME-C) | L | mm | 940 | 940 | 1040 | 1040 | 1040 |
| Net Weight (ME-C) | — | kg | 53 | 58 | 72 | 78 | 83 |
| Net Weight (ME-F) | — | kg | 55 | 62 | 70 | 76 | 82 |
| Net Weight (ME-G) | — | kg | 58 | 65 | 75 | 81 | 85 |
| Optional Platform Size (ME-F / ME-G) | — | mm | 610×530 | 610×530 | 660×580 | 660×580 | 660×580 |
Download the editable English specification
Selecting a configuration
First choose a platform, fixed-fork or adjustable-fork arrangement. Then compare load, maximum height, lowest working position and the overall envelope. Quote the complete model code, not only its height suffix.
Frequently asked questions
Which models are included in this series?
ME-2085, ME-2120, ME-4085, ME-4120, ME-4150. Confirm the complete model and configuration when requesting a quotation.

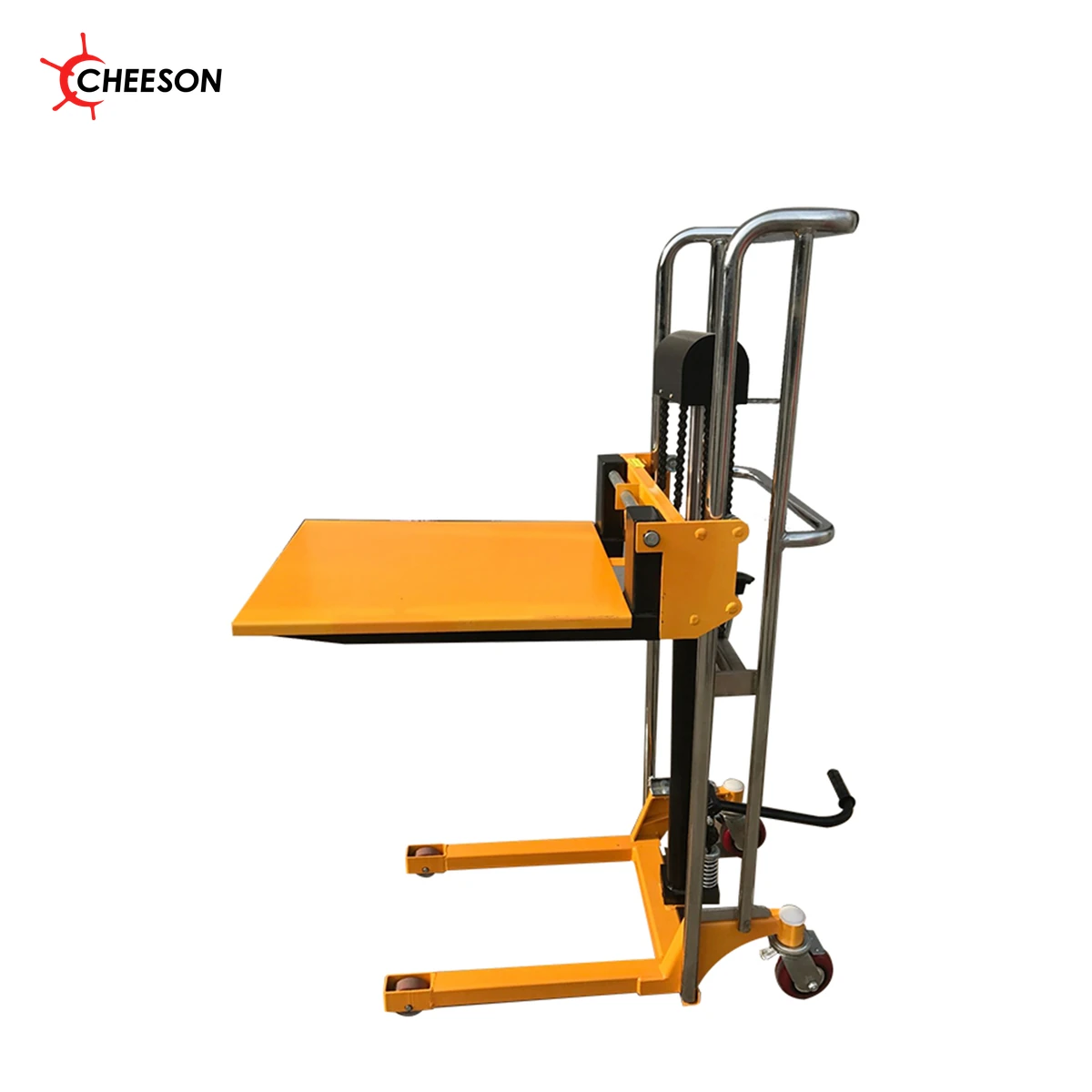

Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
