CHEESON CTY10, CTY15 and CTY20 semi-electric stackers are listed with 1,000, 1,500 and 2,000 kg capacity. The supplied sheet records model-dependent lift-height choices, adjustable fork-width alternatives and different overall dimensions. It also specifies 12 V lifting-system, battery and charger entries. The source table is reproduced without combining distinct mast configurations.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CTY10 | CTY15 | CTY20 |
|---|---|---|---|---|---|
| Capacity | Q | kg | 1000 | 1500 | 2000 |
| Load center | C | mm | 450 | 450 | 450 |
| Lifting height | H | mm | 1600/2000/2500/3000/3300/3500 | 1600/2000/2500/3000/3300/3500 | 800/1600/2000/2500 |
| Lowered height of fork | H3 | mm | 85 | 85 | 85 |
| Fork length | L | mm | 1000/1150 | 1000/1150 | 1000/1150 |
| Fork size | — | mm | 54*160 | 54*160 | 54*160 |
| Fork width | E | mm | 320~540 / 320~680 Adjustable | 320~540 / 320~680 Adjustable | 320~540 / 320~680 Adjustable |
| Turning Radius | Wa | mm | 1360 | 1360 | 1360 |
| Mast extend height | H2 | mm | 2065/2535/3035/3535/3835/4035 | 2065/2535/3035/3535/3835/4035 | 1300/2065/2535/3035 |
| Mast lower height | H1 | mm | 2065/1580/1830/2080/2230/2330 | 2065/1580/1830/2080/2230/2330 | 1300/2065/1580/1830 |
| Overall width | B | mm | 850/950 | 850/950 | 850/950 |
| Overall length | A | mm | 1690/1840 | 1690/1840 | 1870(800mm lifting) / 1720/1690/1840 |
| Minimum ground clearance | H4 | mm | 30 | 30 | 30 |
| Lifting speed(unladen/laden) | — | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
| Lowering speed(unladen/laden) | — | m/s | 0.08~0.15 | 0.08~0.15 | 0.08~0.15 |
| Lifting motor | — | v/kw | 12/1.5 | 12/1.5 | 12/1.5 |
| Battery capacity | — | v/ah | 12/120 | 12/120 | 12/120 |
| Charger | — | v/a | 12/15 | 12/15 | 12/15 |
| Weight | — | kg | 380~460 | 380~480 | 380~480 |
Download the editable English specification
Selecting a configuration
Choose load capacity and required lifting height first, then check the corresponding lowered and extended mast heights. Confirm fork length, adjustment range, pallet entry and electrical configuration. Shared series photographs do not replace the selected configuration in the quotation.
Frequently asked questions
Which models are included in this series?
CTY10, CTY15, CTY20. Confirm the complete model and configuration when requesting a quotation.

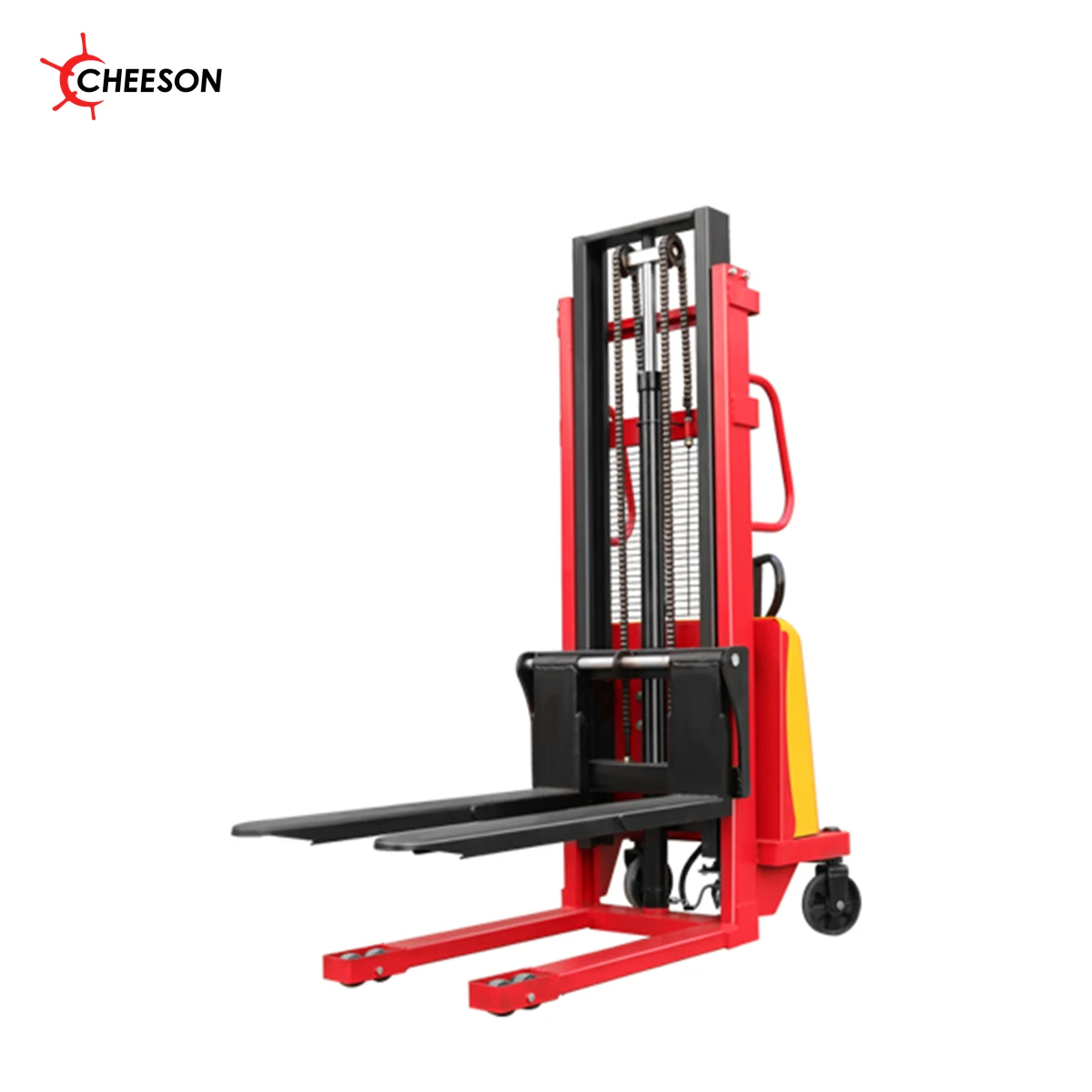

Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
