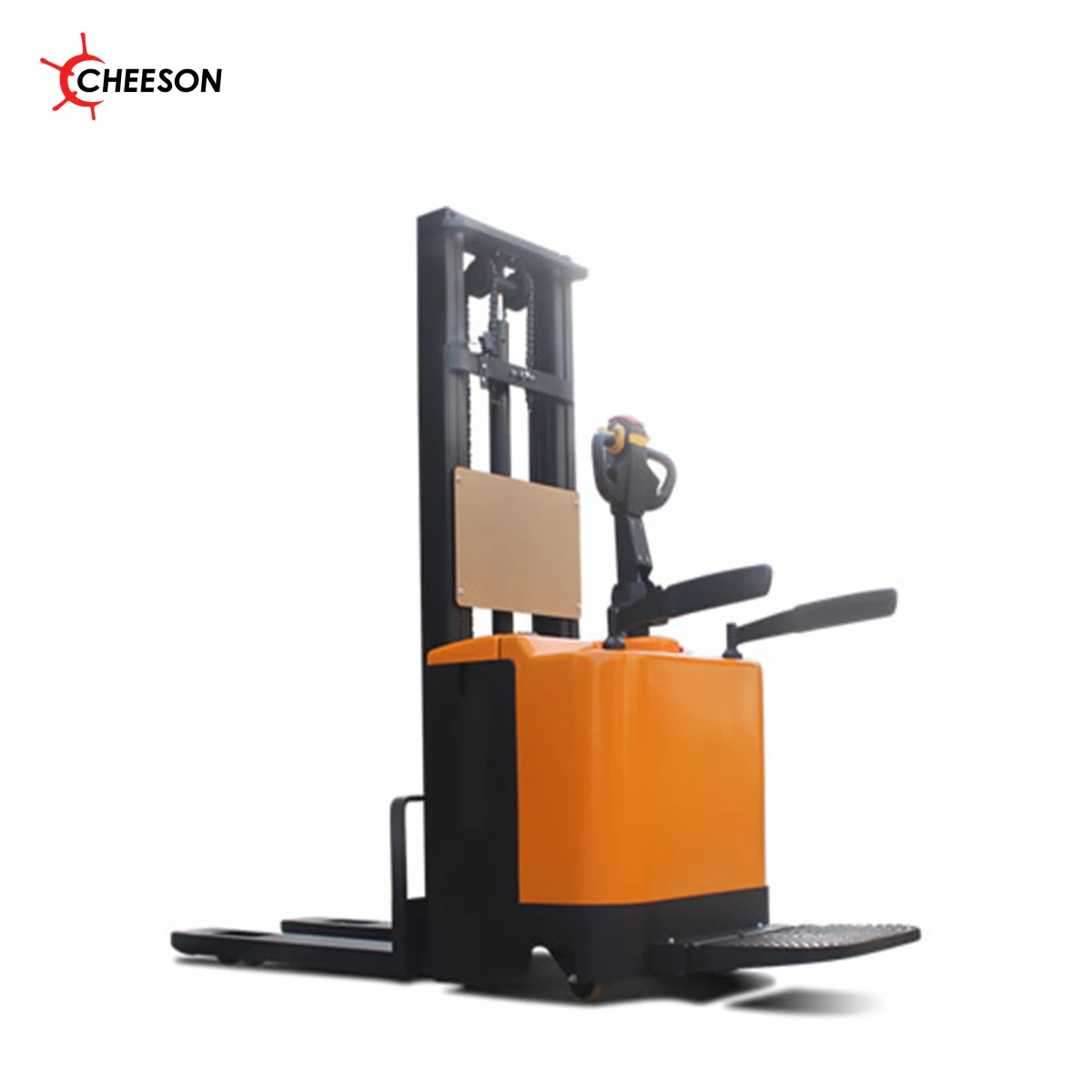

The CHEESON ESS10/ESS20 stand-on electric stacker specification covers 1,000/2,000 kg load-capacity alternatives and a 550 mm load center. The documented lift-height sequence runs from 1,600 to 5,000 mm. The same source provides the matching mast-folded and mast-extended height sequences, PU wheel information, electromagnetic braking and motor/battery details.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | ESS10 / ESS20 |
|---|---|---|---|
| Model | — | — | ESS10 / ESS20 |
| Power | — | — | Electric |
| Driving Way | — | — | Stand-rider |
| Load Capacity | Q | kg | 1000 / 2000 |
| Load Center | C | mm | 550 |
| Tyre | — | — | PU |
| Driving Wheel Size | — | mm | Ø250×80 |
| Load Wheel Size | — | mm | Ø70×80 |
| Balance Wheel Size | — | mm | Ø100×50 |
| Wheel Quantity (Drive / Balance / Load) | — | — | 1 / 2 / 4 |
| Lifting Height | — | mm | 1600 / 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 |
| Mast Folded Height | — | mm | 2100 / 1600 / 1900 / 2100 / 2350 / 1950 / 2100 / 2300 |
| Mast Extended Height | — | mm | 2100 / 2550 / 3050 / 3550 / 4050 / 4550 / 5050 / 5550 |
| Fork Min. Height | — | mm | 90 |
| Overall Length | — | mm | 2250 |
| Overall Width | — | mm | 880 |
| Fork Length | — | mm | 1150 |
| Fork Width | — | mm | 170 |
| Fork Thickness | — | mm | 90 |
| Ground Clearance | — | mm | 30 |
| Max. Fork Width | — | mm | 650 |
| Min. Aisle Width | — | mm | 2400 |
| Turning Radius | — | mm | 1600 |
| Wheelbase | — | mm | 1400 |
| Travel Speed | — | km/h | 3.0 / 5.0 |
| Lifting Speed | — | mm/s | 90 / 125 |
| Lowering Speed | — | mm/s | 100 / 80 |
| Gradeability (Laden / Unladen) | — | ° | 5 / 8 |
| Brake | — | — | Electromagnetic |
| Drive Motor | — | kW | 1 |
| Lift Motor | — | kW | 2.2 |
| Battery | — | V/Ah | 48V / 32Ah |
Download the editable English specification
Selecting a configuration
Specify the required capacity, lift height, pallet dimensions and available aisle. Check the quoted mast configuration against the height sequence in the table. Battery, charger and any additional equipment should be listed explicitly in the order specification.
Frequently asked questions
Which models are included in this series?
ESS10 / ESS20. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
