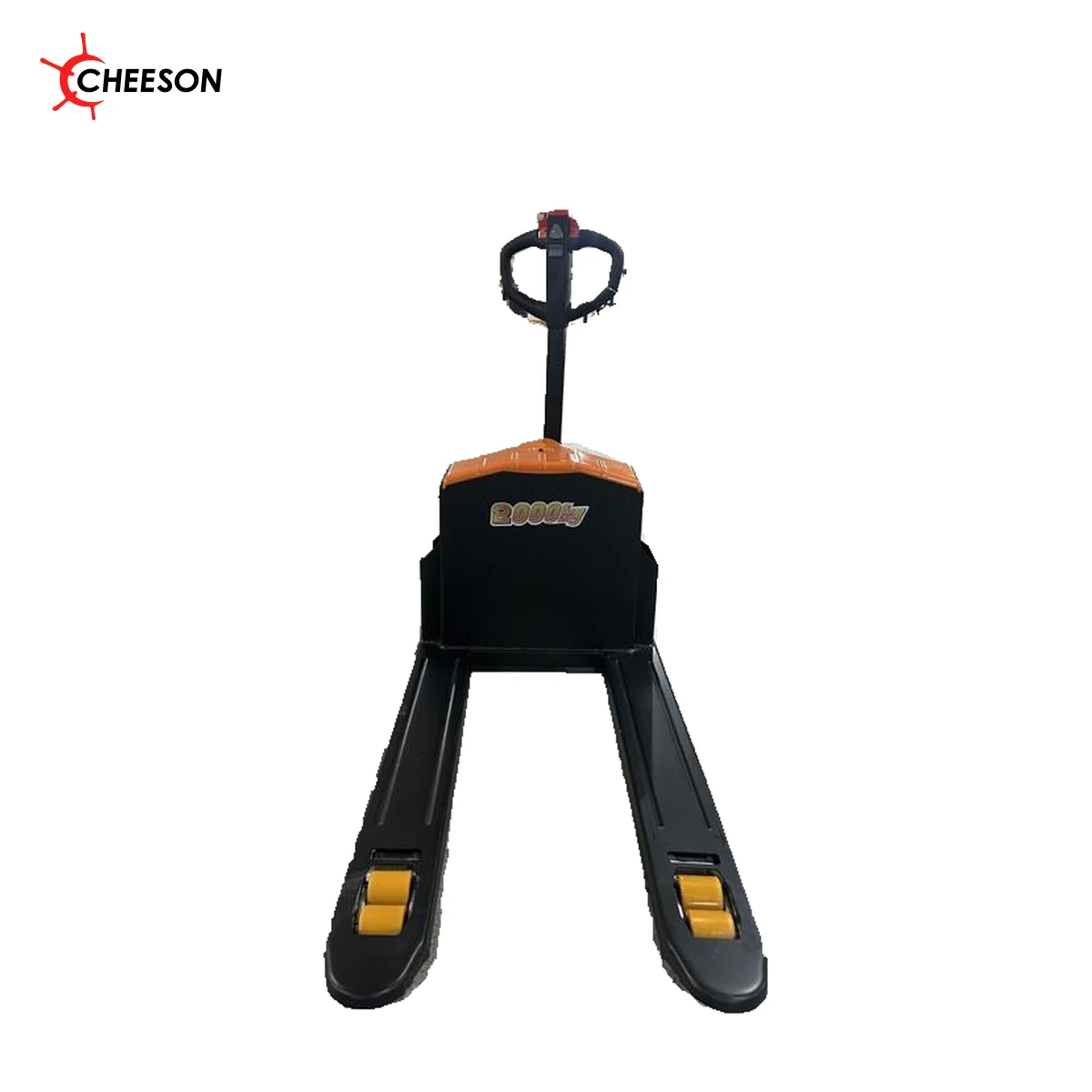

The CHEESON EPT Y series covers EPT15Y, EPT20Y, EPT25Y and EPT30Y walkie electric pallet trucks. Rated-load entries range from 1,500 to 3,000 kg. The latest supplied sheet lists 200 mm maximum fork height, 80 mm minimum fork height, PU wheels, electromagnetic braking and manual steering. Model specifications retain the supplied battery and dimension alternatives.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | EPT15Y | EPT20Y | EPT25Y | EPT30Y |
|---|---|---|---|---|---|---|
| Power | — | — | Electric | Electric | Electric | Electric |
| Operation type | — | — | Walkie | Walkie | Walkie | Walkie |
| Load capacity | — | Kg | 1500 | 2000 | 2500 | 3000 |
| Wheel type | — | — | PU/PU | PU/PU | PU/PU | PU/PU |
| Wheel size-driving wheel | — | mm | 160*55 | 160*55 | 160*55 | 160*55 |
| Wheel size-load wheel | — | mm | 80*70 | 80'70 | 80*70 | 80'70 |
| Maxium lifting height | — | mm | 200 | 200 | 200 | 200 |
| Min fork height | — | mm | 80 | 80 | 80 | 80 |
| Oveall width | — | mm | 685 | 685 | 685 | 685 |
| Fork Size | — | mm | 60*160*1150 | 60*160*1150 | 60*160*1150 | 60*160*1150 |
| Fork width | — | mm | 550/685 | 550/685 | 550/685 | 550/685 |
| Walking speed(load/unload) | — | km/h | 5/6 | 5/6 | 5/6 | 5/6 |
| Grade ability load/unload) | — | % | 6/10 | 6/10 | 6/10 | 6/10 |
| Driving motor | — | kw | 1 | 1 | 1 | 1 |
| lifting motor | — | kw | 1 | 1 | 1 | 1 |
| Driving brake | — | — | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
| Steerng type | — | — | Manual | Manual | Manual | Manual |
| Battery(woltage/capacity) | — | VAh | 48V20Ah48V32Ah | 48V20Ah48V32Ah | 48V20Ah,48V32Ah | 48V20Ah,48V32Ah |
| Service weight(including battery) | — | Kg | 180/190 | 180/190 | 180/190 | 180/190 |
Download the editable English specification
Selecting a configuration
Confirm load, fork width and battery configuration against the selected table column. Travel-speed and gradeability pairs are displayed as written in the source spreadsheet, rather than converted into date values. Confirm the included charger and duty requirements with the order.
Frequently asked questions
Which models are included in this series?
EPT15Y, EPT20Y, EPT25Y, EPT30Y. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
