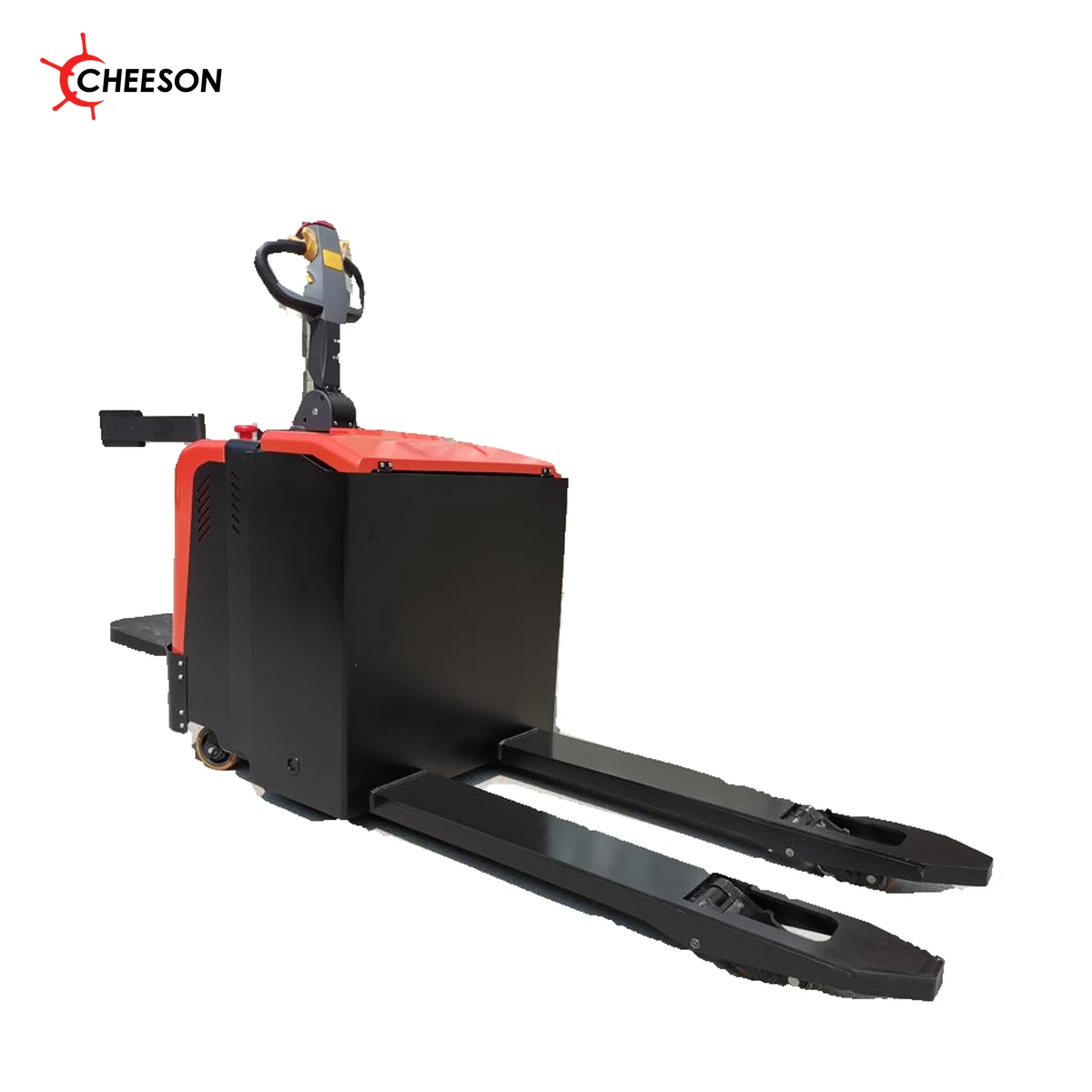

CHEESON CBD20, CBD30 and CBD40 stand-on electric pallet trucks form the documented 2, 3 and 4 tonne CBD range. The source records electric steering, polyurethane wheels, electromagnetic service braking and AC drive control. It lists a 205 mm maximum fork-height entry across the series, while lowered fork height, fork dimensions, battery capacity and motor power differ by model.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CBD20 | CBD30 | CBD40 |
|---|---|---|---|---|---|
| Power type | — | — | Electric | Electric | Electric |
| Operation type | — | — | Standing type | Standing type | Standing type |
| Steering mode | — | — | Electric steering | Electric steering | Electric steering |
| Rated loading capacity | — | kg | 2000 | 3000 | 4000 |
| Load center | — | C(mm) | 600 | 600 | 600 |
| Wheelbase | — | Y(mm) | 1450 | 1450 | 1495 |
| Self weight with battery | — | kg | 715 | 735 | 780 |
| Wheel type | — | — | Polyurethane wheel | Polyurethane wheel | Polyurethane wheel |
| Front wheel size | — | ø×w(mm) | φ80*80 | φ80*80 | φ80*80 |
| Rear wheel size | — | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 |
| Balance wheel size | — | ø×w(mm) | φ125*50 | φ125*50 | φ125*50 |
| Max lifting height | — | H(mm) | 205 | 205 | 205 |
| Height to the fork when lowered | — | H1(mm) | 85 | 85 | 90 |
| Fork outer width | — | S1(mm) | 685/540 | 685/540 | 690 |
| Length of the vehicle(Pedal closed) | — | L(mm) | 1918 | 1918 | 1967 |
| Width of the vehicle | — | S(mm) | 780 | 780 | 780 |
| Fork size | — | s/e/l(mm) | 55/175/1200 | 55/175/1200 | 60/180/1200 |
| Aisle width pallet 1000×1200(Perpendicular to 1200 side) | — | Ast(mm) | 2560 | 2560 | 2608 |
| Min turning radius | — | Wa(mm) | 1760 | 1760 | 1808 |
| Driving speed,no load/full load | — | km/h | 4/5 | 4/5 | 4/5 |
| Lifting speed,no load/full load | — | m/s | 0.045/0.040 | 0.043/0.040 | 0.045/0.043 |
| Descending speed,no load/full load | — | m/s | 0.035/0.043 | 0.035/0.045 | 0.035/0.048 |
| Max grade ability,no load/full load | — | % | 10/8 | 10/6 | 10/6 |
| Service brake | — | — | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive motor power | — | kw | 1.5 | 1.5 | 2.5 |
| Lift motor power | — | kw | 0.8 | 0.8 | 2.2 |
| Battery type | — | — | Lead acid | Lead acid | Lead acid |
| Battery voltage/capacitance | — | VIAh | 24V/210Ah | 24V/210Ah | 24V/280Ah |
| Drive control mode | — | — | AC | AC | AC |
| Driver's ear noise level according to EN12053 | — | dB(A) | 75 | 75 | 75 |
Download the editable English specification
Selecting a configuration
Choose by load, fork spacing, pallet design and aisle clearance. Confirm the battery and charger package, electrical supply and operating requirements. The photographed machine represents this product family; the ordered model is defined by the selected specification column.
Frequently asked questions
Which models are included in this series?
CBD20, CBD30, CBD40. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
