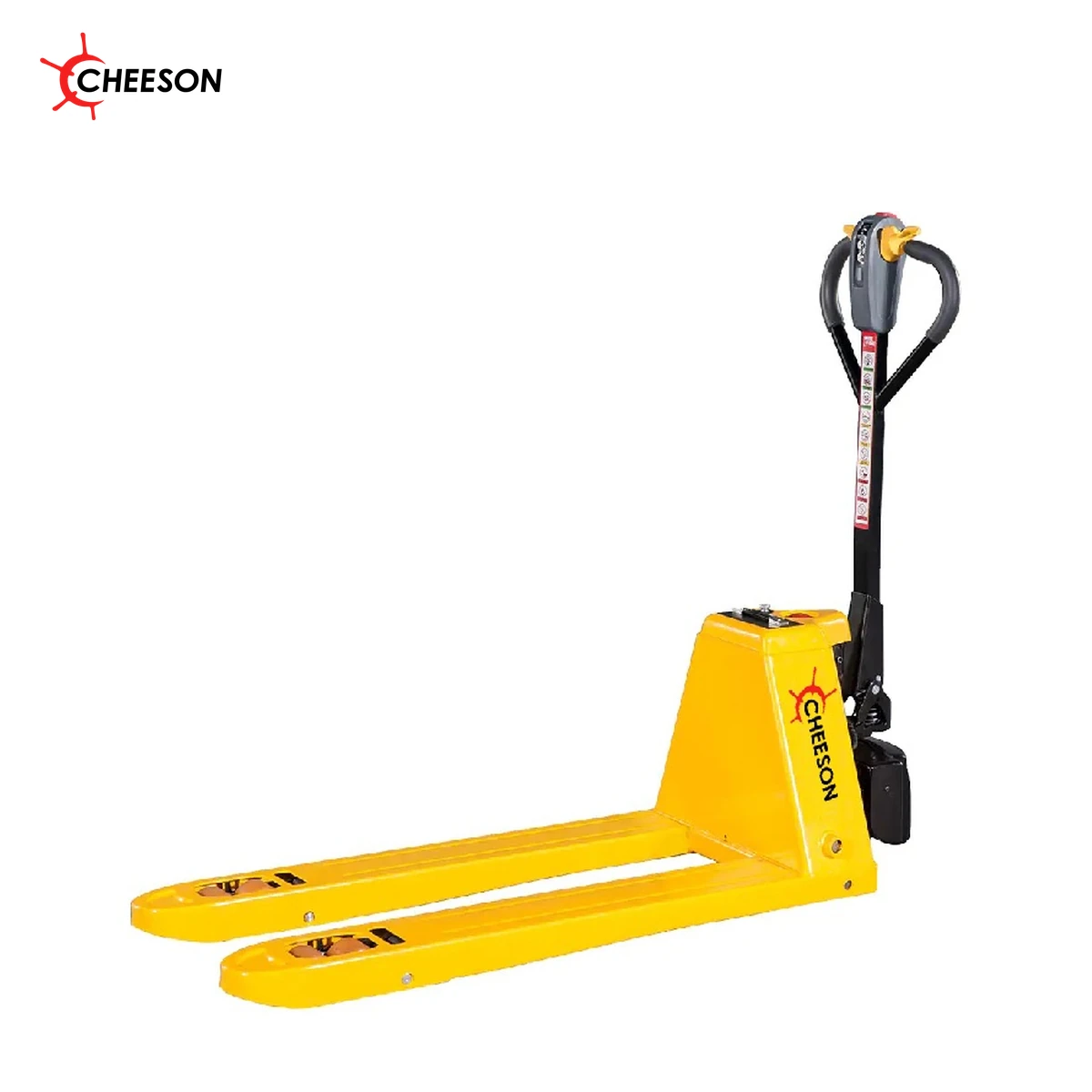

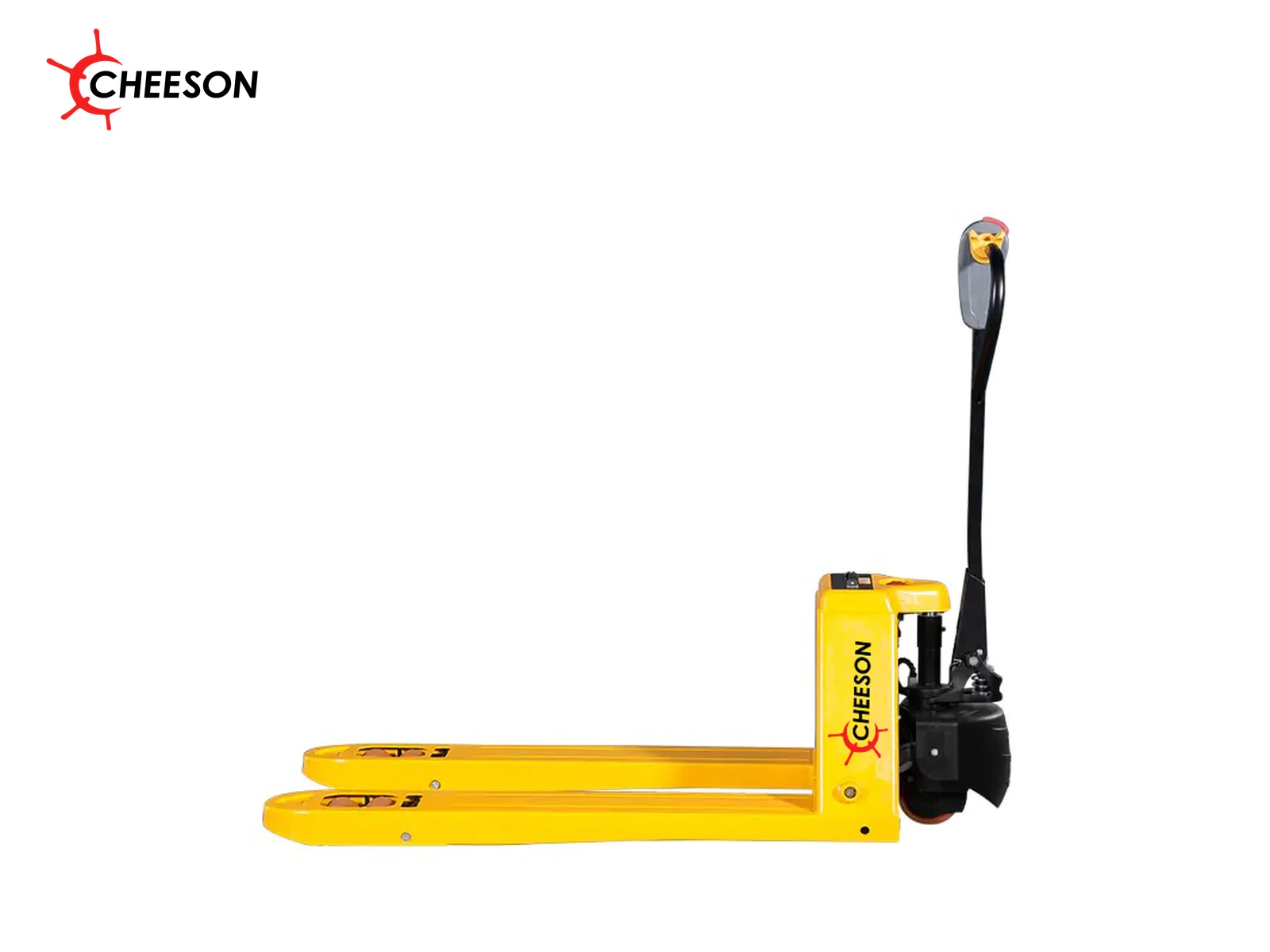

The CHEESON EPT H Series covers pedestrian-operated electric pallet trucks for pallet movement. The current specification lists EPT15H at 1,500 kg and EPT20H at 2,000 kg, both at a 600 mm load center. Series photographs are shared across the capacity and fork-size configurations.
Images show representative series configurations. Exact capacity, dimensions and equipment vary by model and are specified in the table and quotation.
Range and configuration
- EPT15H uses a DC 0.75 kW brushless drive motor; EPT20H uses DC 1.0 kW brushless drive.
- Both models list a DC 0.8 kW lift motor, PU wheels and electromagnetic braking.
- Fork lengths of 1,150 / 1,220 mm and fork outside widths of 550 / 685 mm appear in the specification.
- Battery entries list 48 V / 10 Ah with a 48 V / 15 Ah alternative.
- Travel speed is listed as 4.0 / 4.5 km/h, laden / unladen.
Technical specifications
| MODEL | EPT15H | EPT20H | |
|---|---|---|---|
| Drive | Electric | Electric | |
| Operator type | Pedestrian | Pedestrian | |
| Load capacity/rated load | kg | 1500 | 2000 |
| Loader Center | mm | 600 | 600 |
| Height,fork lowered | mm | 82±2 | 82±2 |
| Wheelbase | y mm | 1197/1267 | 1197/1267 |
| Wheel | PU | PU | |
| Wheel size,front | mm | 140*55 | 140*55 |
| Wheel size,rear | mm | 80*93 (Single Wheel) | 80*93 (Single Wheel) |
| mm | 80*70(Tandem) | 80*70(Tandem) | |
| Wheels,number front/rear(x=drive wheels) | 1x+2/4 | 1x+2/4 | |
| Lift | h₃ mm | 115 | 115 |

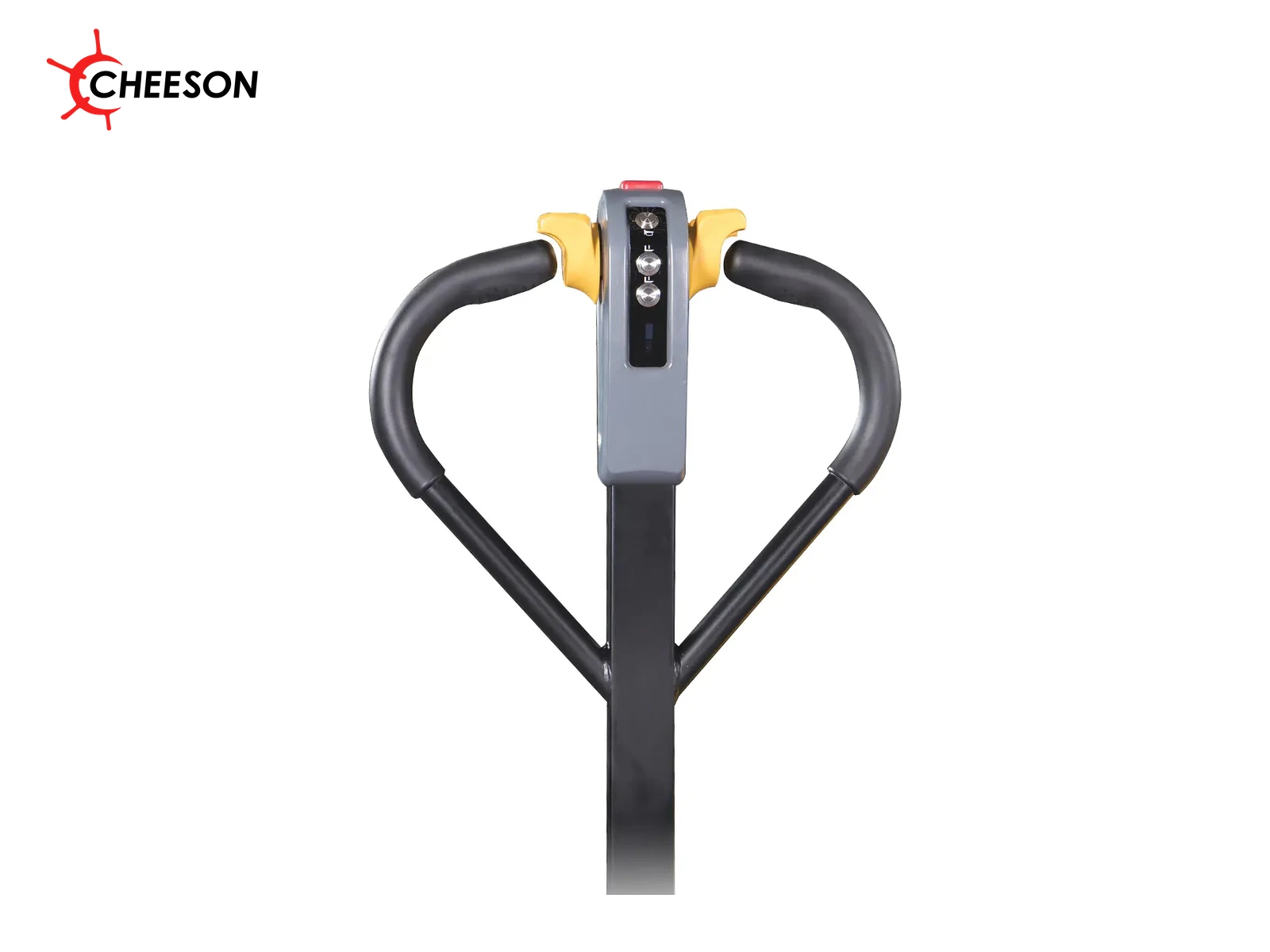

| Height of tiller | 735/1170 | 735/1170 | |
| Overall length | L1 mm | 1552/1622 | 1552/1622 |
| Fork Length | L mm | 1150/1220 | 1150/1220 |
| Overall width | b₁ mm | 550/685 | 550/685 |
| Fork dimensions | mm | 58/160/1150(1220) | 58/160/1150(1220) |
| Distance between fork-arms | b₅ mm | 550/685 | 550/685 |
| Ground clearance,centre of wheelbase | m₂mm | 22/137(24/139) | 22/137(24/139) |
| Aisle width for pallets 1000×1200 lengthways | mm | 2155/2226 | 2155/2226 |
| Aisle width for pallets 800×1200 lengthways | mm | 2024/2064 | 2024/2064 |
| Turning radius | Wa mm | 1353/1426 | 1353/1426 |
| Travel speed,laden/unladen | km/h | 4.0/4.5 | 4.0/4.5 |
| Lifting speed,laden/unladen | mm/s | 18/23 | 18/23 |
| Lowering speed,laden/unladen | mm/s | 56/46 | 56/46 |
| Max.gradeability,laden/unladen | % | 6%/20% | 6%/20% |
| Drive motor | kW | DC 0.75 Brushless | DC 1.0 Brushless |
| Lift motor | kW | DC 0.8 | DC 0.8 |
| Battery voltage/nominal capacity | VIAh | 48V/10Ah(48V/15Ah) | 48V/10Ah(48V/15Ah) |
| Brake | Electromagnetic | Electromagnetic | |
| Service weight including battery | kg | 116.5/123 | 119/125.5 |
Download the English specification (Excel)
Selection and quotation
Choose rated capacity, fork configuration and battery capacity against your pallet size, operating floor and duty pattern. Confirm the supplied battery and charger in the quotation. The specification contains configuration-dependent weight alternatives, rather than one universal weight.
Frequently asked questions
What capacity choices are available in the table?
EPT15H is rated at 1,500 kg and EPT20H at 2,000 kg.
Does the range use brushless drive motors?
The retained specification identifies DC brushless drive motors for both EPT H models.
Are both battery capacities included?
The table lists 48 V / 10 Ah and a 48 V / 15 Ah alternative. The selected battery and included charger should be specified in the quotation.
For a quotation, email reed@cheesontech.com with your requirements.
