CHEESON · KEEP MOVING AND LIFTING

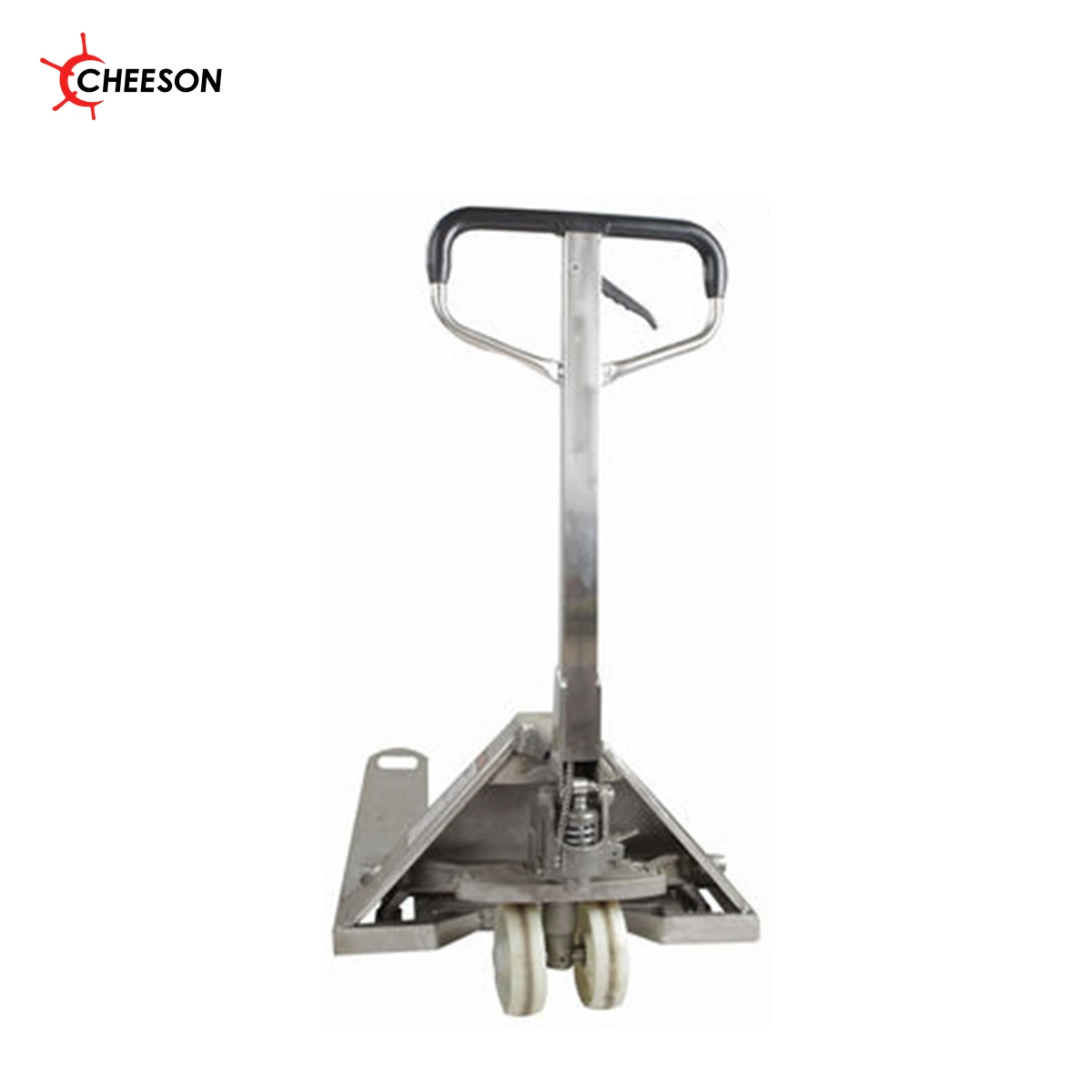

The CHEESON stainless steel pallet truck range includes HPT25SL and HPT30SL, with listed capacities of 2,500 and 3,000 kg. Both models use an integrated pump. The supplied comparison records nylon wheel configurations, a lowered fork height of 85 mm and a maximum fork height of 200 mm. Fork length alternatives are listed individually in the technical table.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | HPT25SL | HPT30SL |
|---|---|---|---|---|
| Capacity | — | kg | 2500 | 3000 |
| Pump type | — | — | Integrated Pump | Integrated Pump |
| wheel size,Rear(Nylon) | — | φD mm | φ200×50 | φ200×50 |
| wheel size,single front(Nylon) | — | φd mm | φ80×93 | φ80×93 |
| wheel size,double front(Nylon) | — | φd mm | φ80×70 | φ80×70 |
| Lifting height | — | h mm | 115 | 115 |
| Height of tiller handle | — | mm | 1230 | 1230 |
| Max.fork lifting height | — | H mm | 200 | 200 |
| Lowered height of fork | — | H1 mm | 85 | 85 |
| Fork outside distance | — | W mm | 540 | 540 |
| Frk length | — | L mm | 800/900/1000/1150/1500/1800/2000 | 800/900/1000/1150/1500/1800/2000 |
| Fork width | — | S mm | 160 | 160 |
| Steel thickness(after painting) | — | mm | 3 | 3 |
Download the editable English specification
Selecting a configuration
Compare the required load, pallet entry dimensions and fork length. Specify the intended operating environment so the stainless-steel grade and component configuration can be confirmed for the quotation. The current source does not identify a specific SUS grade.
Frequently asked questions
Which models are included in this series?
HPT25SL, HPT30SL. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
Request a quotation
Send your model or component requirements, quantity and destination to reed@cheesontech.com. Chat on WhatsApp
