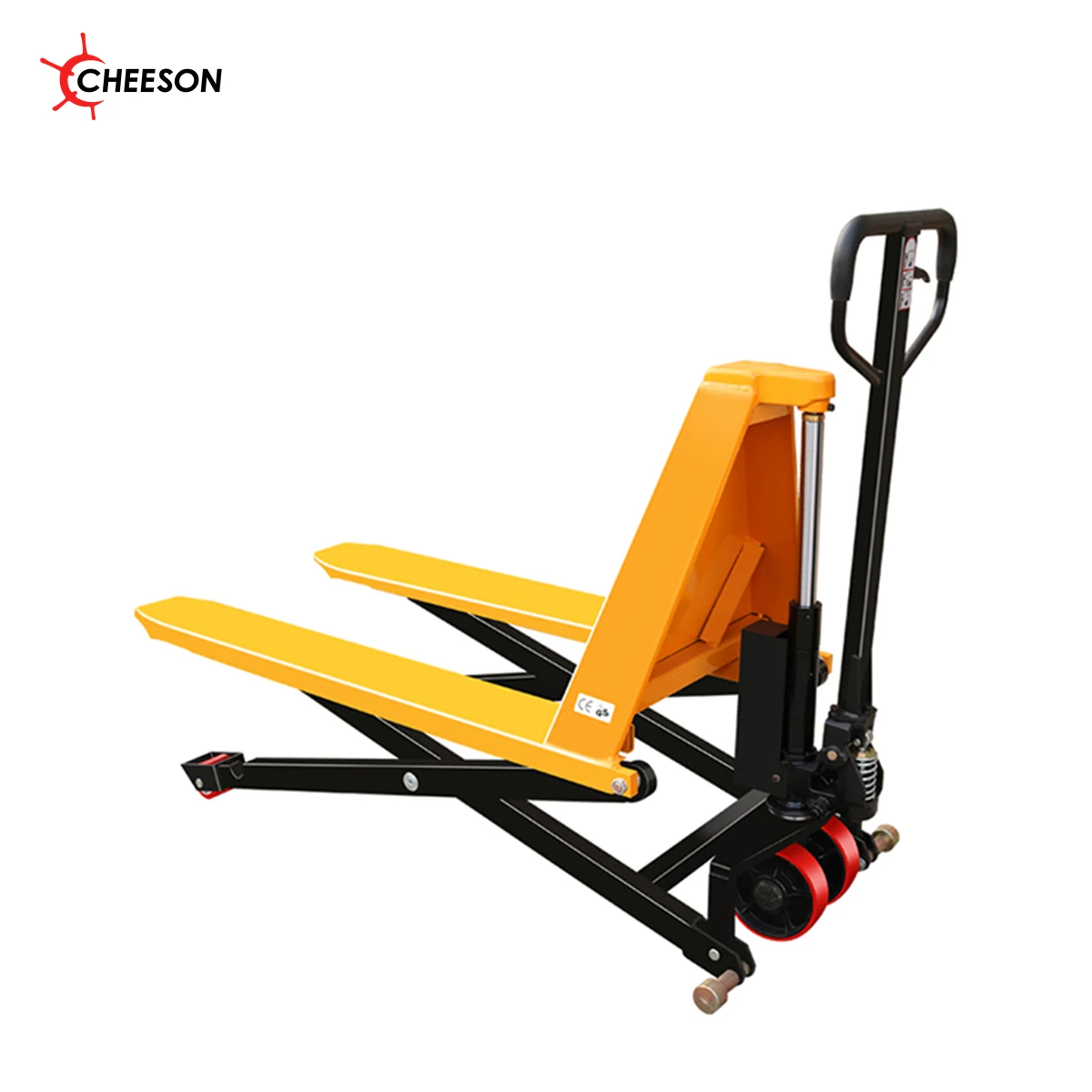

The CHEESON ACHLT-S high lift pallet truck is listed with a 1,500 kg rated load, 85 mm minimum fork height and 800 mm maximum fork height. The current parameter sheet specifies 1,150 mm fork length and 540/680 mm outside-width alternatives. PU/nylon wheel entries and packing information are included in the model table.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | ACHLT-S |
|---|---|---|---|
| Rated Load | Q | kg | 1500 |
| Minimum Fork Height | H1 | mm | 85 |
| Maximum Fork Height | H | mm | 800 |
| Maximum Lifting Stroke | — | mm | ≥715 |
| Fork Outside Width | W | mm | 540 / 680 |
| Fork Inner Width | W1 | mm | 220 / 360 |
| Fork Length | L1 | mm | 1150 |
| Single Fork Width | B | mm | 160 |
| Fork Thickness | s | mm | 50 |
| Overall Length | L | mm | 1540 |
| Overall Height | H2 | mm | 1260 |
| Load Wheel Size | — | mm | Ø80×70 |
| Steering Wheel Size | — | mm | Ø150×50 |
| Wheel Material | — | — | PU / Nylon |
| Minimum Turning Diameter | — | mm | 1260 |
| Net Weight | — | kg | 108 / 114 |
| Gross Weight per Pallet (4 units/pallet) | — | kg | 448 / 472 |
| Packing Size | — | — | ACHLT-S 1.5T 680×1150: 1920×700×800 |
Download the editable English specification
Selecting a configuration
Check the load footprint, fork entry and required lifting position before ordering. Use the current operating instructions for movement and stability restrictions. The website illustration is representative of the series rather than a separate specification for each width option.
Frequently asked questions
Which models are included in this series?
ACHLT-S. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
