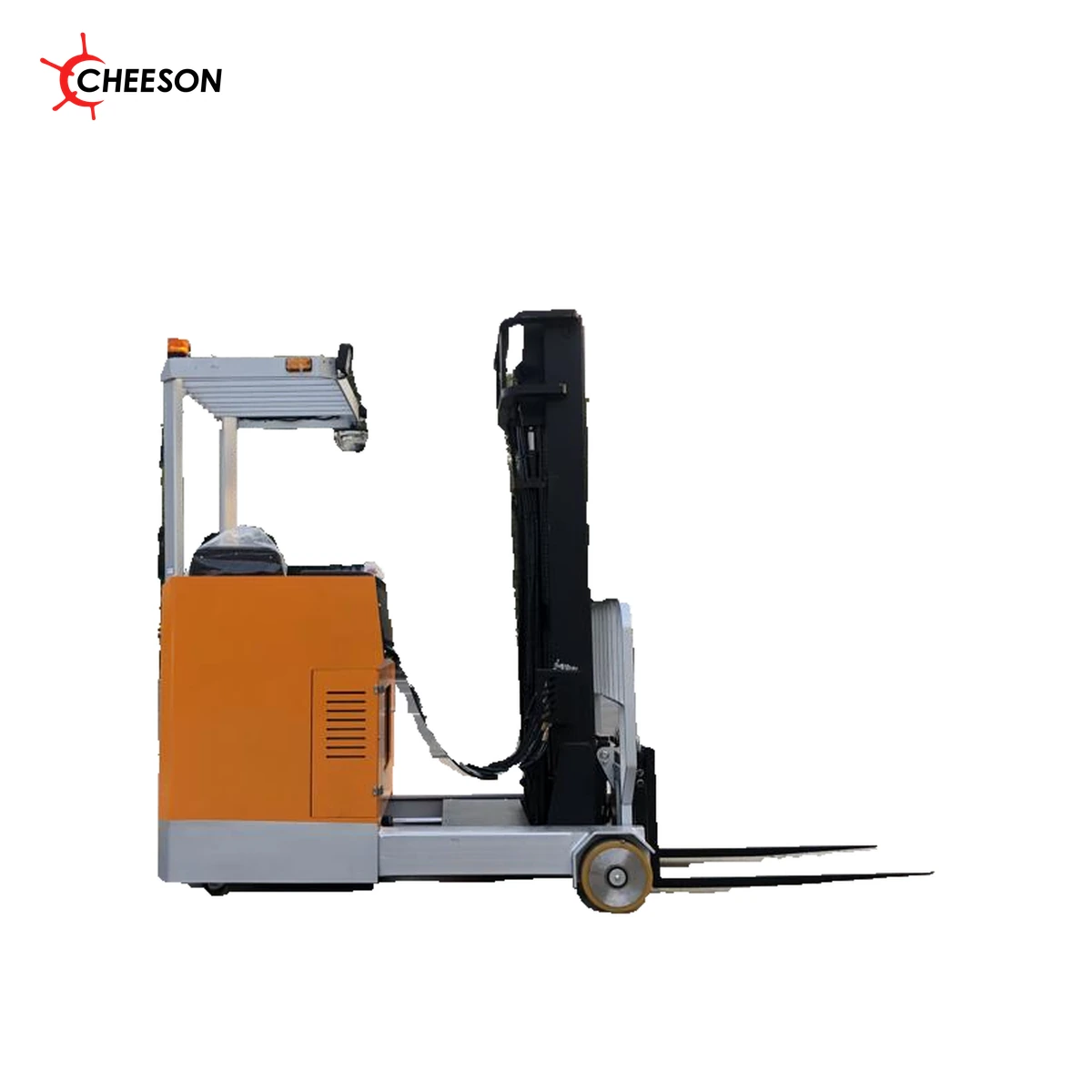

CHEESON seated electric reach trucks are documented as CQD15-45, CQD20-45, CQD20S-45, CQD25-45 and CQD25S-45. The table lists 1,500, 2,000 and 2,500 kg capacity classes at a 500 mm load center, with 4,500 mm lifting height in these configurations. Lead-acid and lithium battery entries differ between the listed model versions.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CQD15-45 | CQD20-45 | CQD20S-45 | CQD25-45 | CQD25S-45 |
|---|---|---|---|---|---|---|---|
| Power | — | — | Electric | Electric | Electric | Electric | Electric |
| Operator Type | — | — | Seated | Seated | Seated | Seated | Seated |
| Rated Capacity | Q | kg | 1500 | 2000 | 2000 | 2500 | 2500 |
| Load Center | C | mm | 500 | 500 | 500 | 500 | 500 |
| Front Overhang | X | mm | 180 | 180 | 180 | 180 | 180 |
| Wheelbase | Y | mm | 1380 | 1480 | 1480 | 1580 | 1580 |
| Service Weight incl. Battery | — | kg | 2180 | 2250 | 2250 | 2380 | 2380 |
| Wheel Material | — | — | PU | PU | PU | PU | PU |
| Front Wheel Size | — | mm | 260×100 | 260×100 | 260×100 | 260×100 | 260×100 |
| Drive Wheel Size | — | mm | 250×80 | 250×80 | 250×80 | 250×100 | 250×100 |
| Balance Wheel Size | — | mm | 125×(50+50) | 125×(50+50) | 125×(50+50) | 125×(50+50) | 125×(50+50) |
| Front Track Width | b10 | mm | 1030 | 1030 | 1030 | 1030 | 1030 |
| Rear Track Width | b11 | mm | 840 | 840 | 840 | 840 | 840 |
| Mast Height, Lowered | h1 | mm | 2100 | 2150 | 2150 | 2250 | 2250 |
| Lift Height | h3 | mm | 4500 | 4500 | 4500 | 4500 | 4500 |
| Max. Mast Height in Operation | h4 | mm | 5500 | 5500 | 5500 | 5500 | 5500 |
| Overhead Guard Height | h14 | mm | 2000 | 2000 | 2000 | 2000 | 2000 |
| Fork Height, Mast Retracted | h13 | mm | 35 | 40 | 40 | 40 | 40 |
| Mast / Fork Tilt, Front / Rear | α/β | ° | 3 / 5 | 3 / 5 | 3 / 5 | 3 / 5 | 3 / 5 |
| Overall Length | l1 | mm | 2370 | 2470 | 2470 | 2570 | 2570 |
| Body Length | l2 | mm | 1800 | 1900 | 1900 | 2000 | 2000 |
| Overall Width | b1 | mm | 1125 | 1125 | 1125 | 1125 | 1125 |
| Fork Dimensions | s/e/l | mm | 35/100/1070 | 35/122/1070 | 35/122/1070 | 40/122/1070 | 40/122/1070 |
| Fork Adjustment Range | b5 | mm | 210–800 | 250–800 | 250–800 | 250–800 | 250–800 |
| Reach Distance | L | mm | 550 | 550 | 550 | 550 | 550 |
| Ground Clearance, Center of Wheelbase | m2 | mm | 80 | 80 | 80 | 80 | 80 |
| Aisle Width, 1000×1200 Pallet Crossways | Ast | mm | 2645 | 2645 | 2645 | 2764 | 2764 |
| Turning Radius | Wa | mm | 1600 | 1700 | 1700 | 1800 | 1800 |
| Travel Speed, Unladen / Laden | — | km/h | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Lift Speed, Unladen / Laden | — | m/s | 0.087 / — | 0.087 / — | 0.087 / — | 0.135 / 0.110 | 0.135 / 0.100 |
| Lowering Speed, Unladen / Laden | — | m/s | 0.098 / — | 0.098 / — | 0.098 / — | 0.085 / 0.132 | 0.085 / 0.140 |
| Max. Gradeability, Unladen / Laden | — | % | ≤8 / 6 | ≤8 / 6 | ≤8 / 6 | 8 / 4 | 8 / 4 |
| Service Brake | — | — | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive Motor Power | — | kW | 2.2 | 3 | 3 | 3 | 4.5 |
| Lift Motor Power | — | kW | 3 | 3 | 4.5 | 3 | 5 |
| Battery Type | — | — | Lead-acid | Lead-acid | Lithium | Lead-acid | Lithium |
| Battery Voltage / Capacity | — | V/Ah | 24V / 280Ah | 24V / 280Ah | 48V / 200Ah | 24V / 280Ah | 48V / 240Ah |
| Charger | — | V/A | 24V / 40A | 24V / 40A | 48V / 50A | 24V / 40A | 48V / 50A |
| Drive Control | — | — | AC | AC | AC | AC | AC |
| Noise at Operator's Ear (EN12053) | — | dB(A) | 70 | 70 | 70 | 70 | 70 |
Download the editable English specification
Selecting a configuration
Confirm aisle width, pallet orientation, required lift height, load center and battery package. Review the exact mast and load chart for the ordered configuration. Where the source omits a laden lifting or lowering-speed value, the published comparison leaves it unspecified rather than estimating it.
Frequently asked questions
Which models are included in this series?
CQD15-45, CQD20-45, CQD20S-45, CQD25-45, CQD25S-45. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
