The CHEESON diesel counterbalance forklift specification covers CPC/CPCD model pairs in 2.0, 2.5, 3.0, 3.5, 4.0 and 5.0 tonne classes. The supplied table lists a 500 mm load center and a 3,000 mm lifting-height entry for its documented standard configurations. Model columns include dimensions, tires, performance figures and engine/transmission information.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | CPC20 | CPCD20 | CPC25 | CPCD25 | CPC30 | CPCD30 |
|---|---|---|---|---|---|---|---|---|
| Power type | — | — | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Rated load | — | kg | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 |
| load center | — | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Driving style | — | — | Sit-on type | Sit-on type | Sit-on type | Sit-on type | Sit-on type | Sit-on type |
| Maximum lifting height | H | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast height (forks on the ground, mast vertical) | H1 | mm | 2050 | 2050 | 2050 | 2050 | 2070 | 2070 |
| Maximum lifting height of fork (with shelf guard) | H2 | mm | 4060 | 4060 | 4060 | 4060 | 4220 | 4220 |
| Free lifting height | H3 | mm | / | / | / | / | 30 | 30 |
| Overall height (overhead guard) | H4 | mm | 2080 | 2080 | 2080 | 2080 | 2090 | 2090 |
| Minimum ground clearance (at mast) | H5 | mm | 115 | 115 | 115 | 115 | 135 | 135 |
| Distance from seat surface to overhead guardrail | H6 | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Tow pin height | H9 | mm | 230 | 230 | 230 | 230 | 310 | 310 |
| Height of backrest (from mast fork surface) | H13 | mm | 1065 | 1065 | 1065 | 1065 | 1215 | 1215 |
| Overall length (with fork/without fork) | L/L' | mm | 3725/2505 | 3725/2505 | 3805/2585 | 3805/2585 | 3968/2748 | 3968/2748 |
| wheelbase | L4 | mm | 1635 | 1635 | 1635 | 1635 | 1755 | 1755 |
| Front overhang | L2 | mm | 440 | 440 | 440 | 440 | 460 | 460 |
| rear overhang | L3 | mm | 430 | 430 | 510 | 510 | 533 | 533 |
| Full Width | W1 | mm | 1160 | 1160 | 1160 | 1160 | 1230 | 1230 |
| Wheelbase (front track/rear track) | W3/W2 | mm | 970/970 | 970/970 | 970/970 | 970/970 | 1000/970 | 1000/970 |
| Fork distance (outer) (maximum/minimum) | W5 | mm | 940/200 | 940/200 | 940/244 | 940/244 | 1060/244 | 1060/244 |
| Minimum turning radius | r | mm | 2160 | 2160 | 2240 | 2240 | 2390 | 2390 |
| Mast inclination | a/b | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Fork size | L4 | mm | 40X100X1220 | 40X100X1220 | 40X122X1220 | 40X122X1220 | 45X122X1220 | 45X122X1220 |
| Maximum travel speed (full load/empty load) | — | km/h | 17/19 | 17/19 | 17/19 | 17/19 | 18/19 | 18/19 |
| Lifting speed (full load/no load) | — | mm/s | 540/580 | 540/580 | 540/580 | 540/580 | 440/480 | 440/480 |
| Lowering speed (full load/no load) | — | mm/s | 440/430 | 440/430 | 440/430 | 440/430 | 440/430 | 440/430 |
| Maximum traction (full load/unloaded) | — | kN | 16.4/8.3 | 16.4/8.3 | 16.4/8.3 | 16.4/8.3 | 17.5/13.4 | 19.5/15.5 |
| Maximum climbing ability (full load/no load) | — | % | 22/18 | 22/18 | 22/18 | 22/18 | 15/20 | 15/20 |
| Gross weight | — | kg | 3500 | 3500 | 3850 | 3850 | 4230 | 4230 |
| Number of wheels X = driving wheels (front/rear) | — | — | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tire type (front/rear) | — | — | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire |
| Tire size (front/rear) | — | — | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 28X9-15-14PR/6.50-10-10PR | 28X9-15-14PR/6.50-10-10PR |
| Service brakes | — | — | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type |
| parking brake | — | — | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever |
| Battery (voltage/capacity) | — | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 |
| Engine Make/Model | — | — | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 |
| Engine rated power | — | kW/rpm | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 |
| Engine rated torque | — | NM/rpm | 157/1800 | 157/1800 | 157/1800 | 157/1800 | 157/1800 | 157/1800 |
| Number of cylinders-bore x stroke | — | — | 4-93X105 | 4-93X105 | 4-93X105 | 4-93X105 | 4-93X105 | 4-93X105 |
| Engine displacement | — | L | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
| Engine fuel tank capacity | — | L | 50 | 50 | 50 | 50 | 50 | 50 |
| Emission standards | — | — | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ |
| Transmission speed number (front/rear type) | — | — | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M |
| Parameter | Symbol | Unit | CPC35 | CPCD35 | CPC40 | CPCD40 | CPC50 | CPCD50 |
|---|---|---|---|---|---|---|---|---|
| Power type | — | — | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Rated load | — | kg | 3500 | 3500 | 4000 | 4000 | 5000 | 5000 |
| load center | — | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Driving style | — | — | Sit-on type | Sit-on type | Sit-on type | Sit-on type | Sit-on type | Sit-on type |
| Maximum lifting height | H | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast height (forks on the ground, mast vertical) | H1 | mm | 2070 | 2070 | 2150 | 2150 | 2205 | 2205 |
| Maximum lifting height of fork (with shelf guard) | H2 | mm | 4220 | 4220 | 4240 | 4240 | 4260 | 4260 |
| Free lifting height | H3 | mm | 30 | 30 | 30 | 30 | 50 | 50 |
| Overall height (overhead guard) | H4 | mm | 2090 | 2090 | 2110 | 2110 | 2215 | 2215 |
| Minimum ground clearance (at mast) | H5 | mm | 135 | 135 | 148 | 148 | 175 | 175 |
| Distance from seat surface to overhead guardrail | H6 | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Tow pin height | H9 | mm | 310 | 310 | 325 | 325 | 390 | 390 |
| Height of backrest (from mast fork surface) | H13 | mm | 1215 | 1215 | 1215 | 1215 | 1190 | 1190 |
| Overall length (with fork/without fork) | L/L' | mm | 3968/2748 | 3968/2748 | 4080/2860 | 4080/2860 | 4280/3060 | 4280/3060 |
| wheelbase | L4 | mm | 1755 | 1755 | 1860 | 1860 | 1950 | 1950 |
| Front overhang | L2 | mm | 460 | 460 | 460 | 460 | 530 | 530 |
| rear overhang | L3 | mm | 533 | 533 | 533 | 533 | 575 | 575 |
| Full Width | W1 | mm | 1230 | 1230 | 1290 | 1290 | 1380 | 1380 |
| Wheelbase (front track/rear track) | W3/W2 | mm | 1000/970 | 1000/970 | 1000/970 | 1000/970 | 1080/982 | 1080/982 |
| Fork distance (outer) (maximum/minimum) | W5 | mm | 1060/244 | 1060/244 | 1060/250 | 1060/250 | 1260/250 | 1260/250 |
| Minimum turning radius | r | mm | 2390 | 2390 | 2550 | 2550 | 3000 | 3000 |
| Mast inclination | a/b | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Fork size | L4 | mm | 45X122X1220 | 45X122X1220 | 50X125X1220 | 50X125X1220 | 50X125X1220 | 50X125X1220 |
| Maximum travel speed (full load/empty load) | — | km/h | 18/19 | 18/19 | 18/19 | 18/19 | 22 | 22 |
| Lifting speed (full load/no load) | — | mm/s | 440/480 | 440/480 | 440/480 | 440/480 | 300/330 | 300/330 |
| Lowering speed (full load/no load) | — | mm/s | 440/430 | 440/430 | 440/430 | 440/430 | 330/300 | 330/300 |
| Maximum traction (full load/unloaded) | — | kN | 18.1/13.4 | 19.6/16.2 | 18.1/13.4 | 19.6/16.2 | 19.5 | 19.5 |
| Maximum climbing ability (full load/no load) | — | % | 15/20 | 15/20 | 15/20 | 15/20 | 15/15 | 15/15 |
| Gross weight | — | kg | 4530 | 4530 | 4860 | 4860 | 5600 | 5600 |
| Number of wheels X = driving wheels (front/rear) | — | — | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tire type (front/rear) | — | — | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire |
| Tire size (front/rear) | — | — | 28X9-15-14PR/6.50-10-10PR | 28X9-15-14PR/6.50-10-10PR | 250-15-14PR/6.50-10-10PR | 250-15-14PR/6.50-10-10PR | 300-15-16PR/7.00-12-12PR | 300-15-16PR/7.00-12-12PR |
| Service brakes | — | — | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type | Mechanical-pedal type |
| parking brake | — | — | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever |
| Battery (voltage/capacity) | — | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 |
| Engine Make/Model | — | — | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V29-50V42 | Quanchai V30-50V42 | Quanchai V30-50V42 |
| Engine rated power | — | kW/rpm | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 |
| Engine rated torque | — | NM/rpm | 157/1800 | 157/1800 | 157/1800 | 157/1800 | 150/1800 | 150/1800 |
| Number of cylinders-bore x stroke | — | — | 4-93X105 | 4-93X105 | 4-93X105 | 4-93X105 | 4-98X105 | 4-98X105 |
| Engine displacement | — | L | 2.85 | 2.85 | 2.85 | 2.85 | 3.17 | 3.17 |
| Engine fuel tank capacity | — | L | 50 | 50 | 50 | 50 | 50 | 50 |
| Emission standards | — | — | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ | CHINA Ⅳ |
| Transmission speed number (front/rear type) | — | — | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M 2-2 Manual Shift T/M |
Download the editable English specification
Selecting a configuration
Specify the required load, load center, mast height, fork size, tires and attachments. Confirm the actual engine and transmission in the quotation, including documentation required for the destination market. A source emissions entry is not treated as approval for every export country.
Frequently asked questions
Which models are included in this series?
CPC20, CPCD20, CPC25, CPCD25, CPC30, CPCD30, CPC35, CPCD35, CPC40, CPCD40, CPC50, CPCD50. Confirm the complete model and configuration when requesting a quotation.

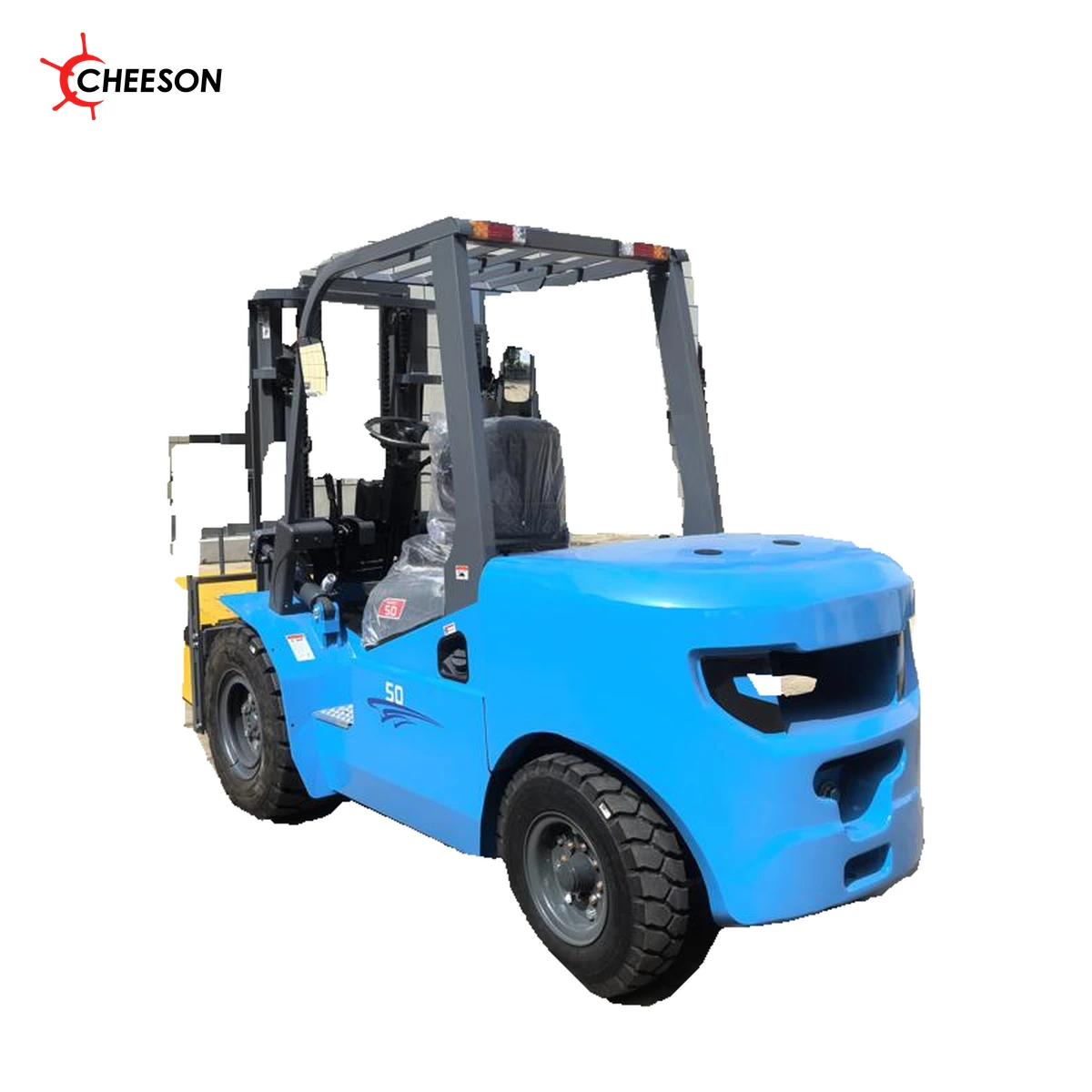

Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
