The CHEESON SD series drum dolly specification covers SD30, SD55A, SD55B, SD55C and SD55D. Rated loads of 300 or 400 kg are listed by model, together with wheel dimensions, net weights and overall frame dimensions. The gallery is shared within the SD product folder.

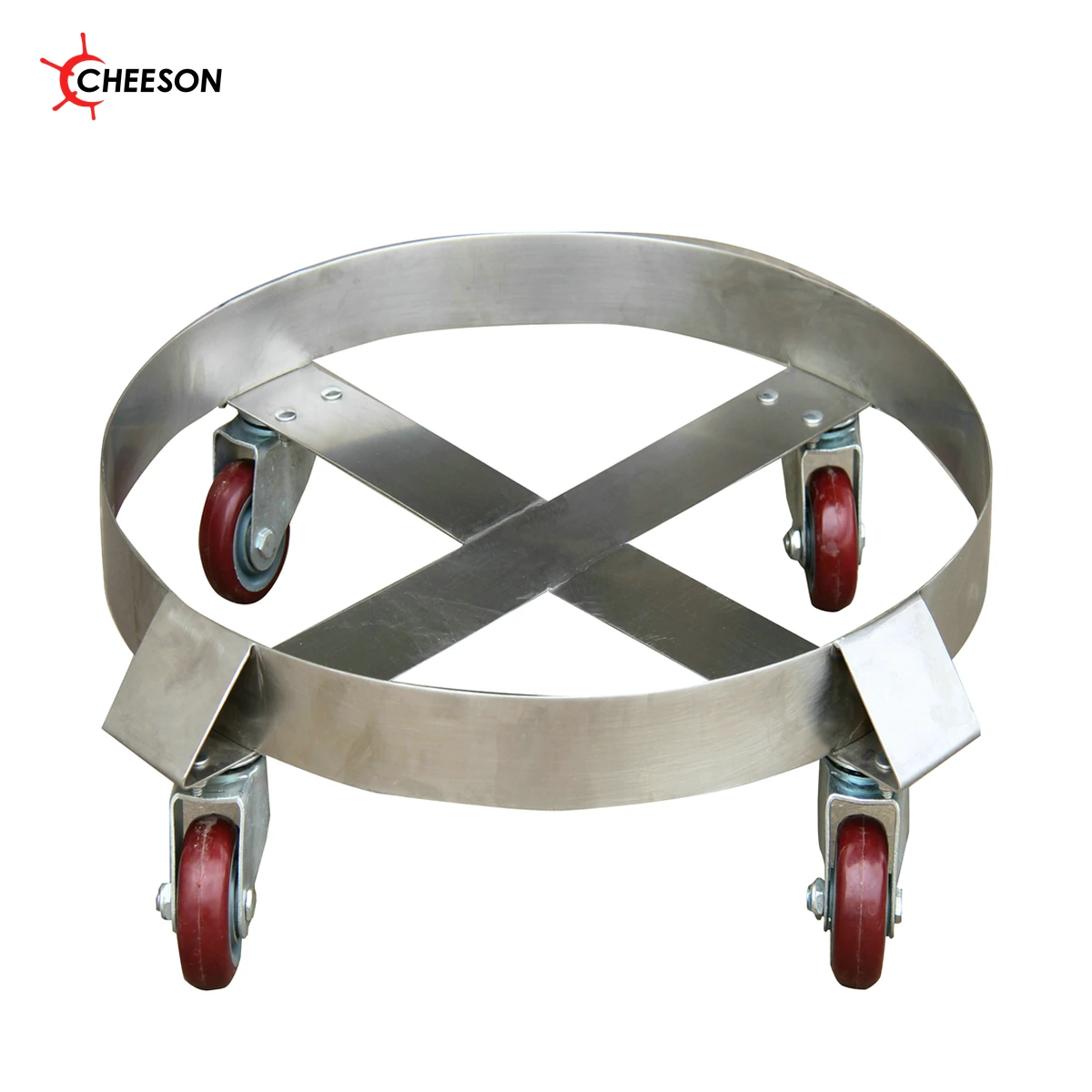

Images show representative series configurations. Exact capacity, dimensions and equipment vary by model and are specified in the table and quotation.
Range and configuration
- SD30, SD55A and SD55C are listed at 300 kg; SD55B and SD55D at 400 kg.
- The wheel row lists PU wheels of Ø75 × 32 mm across the variants.
- SD30 dimensions are 510 × 510 × 150 mm.
- SD55A / SD55C dimensions are 610 × 610 × 150 mm.
- SD55B / SD55D dimensions are 730 × 730 × 150 mm.
Technical specifications
| Model | SD30 | SD55A | SD55B | SD55C | SD55D |
|---|---|---|---|---|---|
| Rated load (kg) | 300KG | 300KG | 400KG | 300KG | 400KG |
| Net weight(kg) | 5.8KG | 6.8KG | 7.5KG | 6.8KG | 5.7KG |
| Specification of wheel(PU wheel)(mm) | Ø75×32 | Ø 75×32 | ø75×32 | ø75×32 | Ø75×32 |
| Complete dimension (length*width*height)(mm) | 510×510×150 | 610x610x150 | 730×730×150 | 610×610×150 | 730x730x150 |
Download the English specification (Excel)
Selection and quotation
Check the loaded drum weight and base footprint against the selected frame. Choose by the model table rather than assuming identical frame dimensions for every image. Supply the intended drum dimensions, quantity and delivery destination when requesting a quote.
Frequently asked questions
Which rated capacities are documented?
The supplied table contains 300 and 400 kg models.
What wheel size is listed?
The specification gives PU wheels of Ø75 × 32 mm.
Do all SD variants have the same dimensions?
No. Three overall size groups are listed, with different model-specific net weights.
For a quotation, email reed@cheesontech.com with your requirements.
