The CHEESON YL semi-electric drum-rotator sheet covers YL500A, YL500A-1, YL500B and YL500B-1. Each model entry lists a 500 kg rated load and 1,600 mm maximum lifting height. The table distinguishes hoop and mouth-type entries, records electric rising and flipping, and identifies different weighing-equipment and net-weight entries.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | YL500A | YL500A-1 | YL500B | YL500B-1 |
|---|---|---|---|---|---|---|
| Rated load | — | kg | 500 | 500 | 500 | 500 |
| Net weight | — | kg | 250 | 255 | 250 | 255 |
| Electric rising | — | — | √ | V | √ | V |
| Electric flip | — | — | √ | √ | √ | √ |
| Electronic scale | — | — | — | √ | — | √ |
| Anchorear type | — | — | √ | √ | — | — |
| Mouth type | — | — | — | — | √ | √ |
| Specification ofront wheel (nylon whel) | — | mm | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 |
| Specification of rear wheel(nylon wheel) | — | mm | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 |
| Inner and outer widthof front supportingleg | — | mm | 640、800 | 640、800 | 640、800 | 640、800 |
| Length of front leg | — | mm | 730 | 730 | 730 | 730 |
| Complete dimension (length'width height) | — | mm | 1500×950×2060 | 1500×950×2060 | 1500×950×2060 | 1500×950×2060 |
| Minimum turning radius | — | mm | 1850 | 1850 | 1850 | 1850 |
| Pump station power | — | kw/h | 1.6 | 1.6 | 1.6 | 1.6 |
| Battery parameters | — | VIAH | 12/120 | 12/120 | 12/120 | 12/120 |
| Intelligent charger | — | V | 12 | 12 | 12 | 12 |
| Charger of weighing display | — | V | — | 6 | — | 6 |
| Maximum lifting height | — | mm | 1600 | 1600 | 1600 | 1600 |
| Liting speed | — | mm/s | 120 | 120 | 120 | 120 |
| Flip speed | — | — | 360°/60s | 360°/60s | 360°/60s | 360°/60s |
Download the editable English specification
Selecting a configuration
Quote the complete A/B and -1 suffix together with drum dimensions and gross weight. Confirm the gripping arrangement, weighing requirement, electrical package and rotation operation for the ordered unit. Source marks and unlabeled equipment alternatives are not converted into unsupported standard-feature claims.
Frequently asked questions
Which models are included in this series?
YL500A, YL500A-1, YL500B, YL500B-1. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?

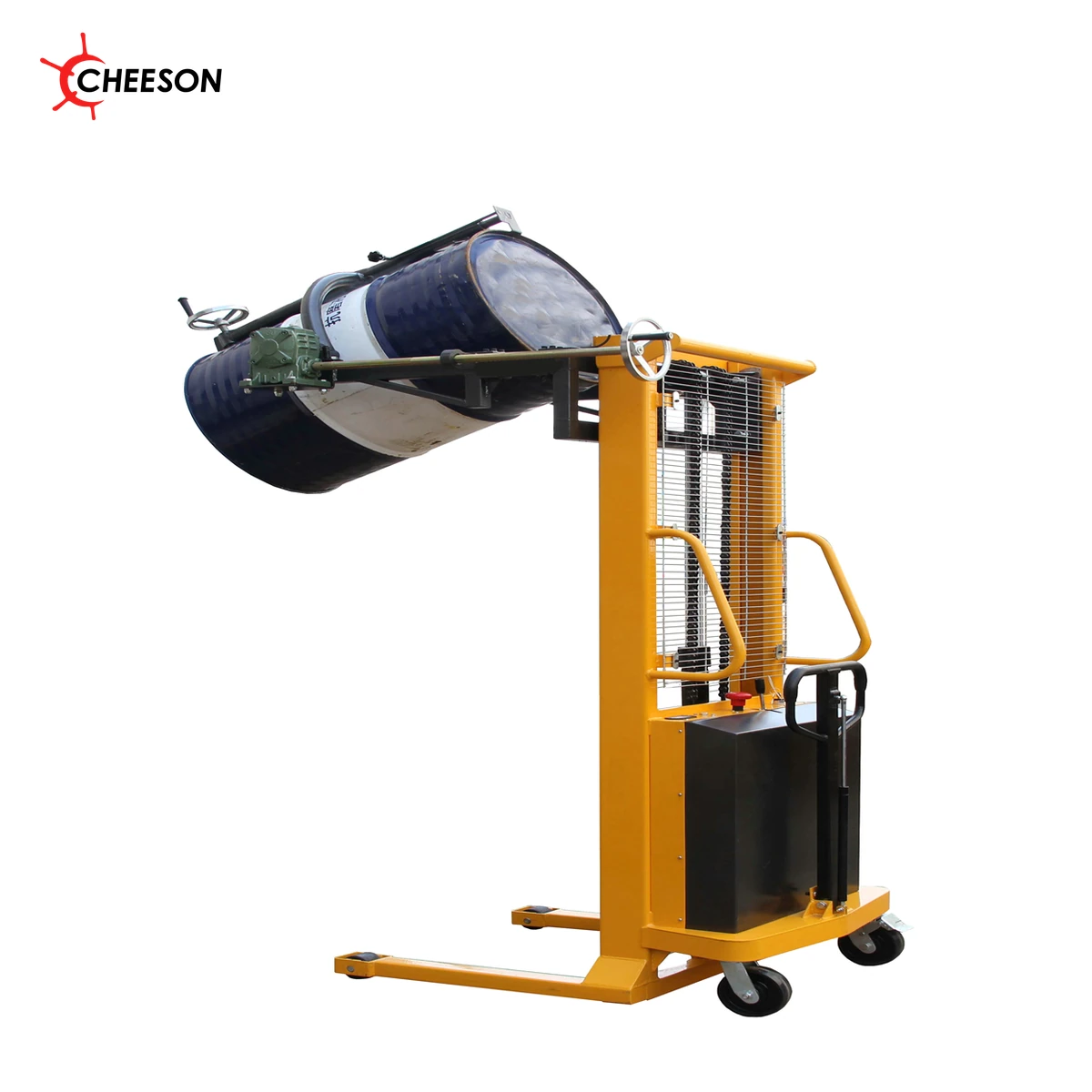

Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
