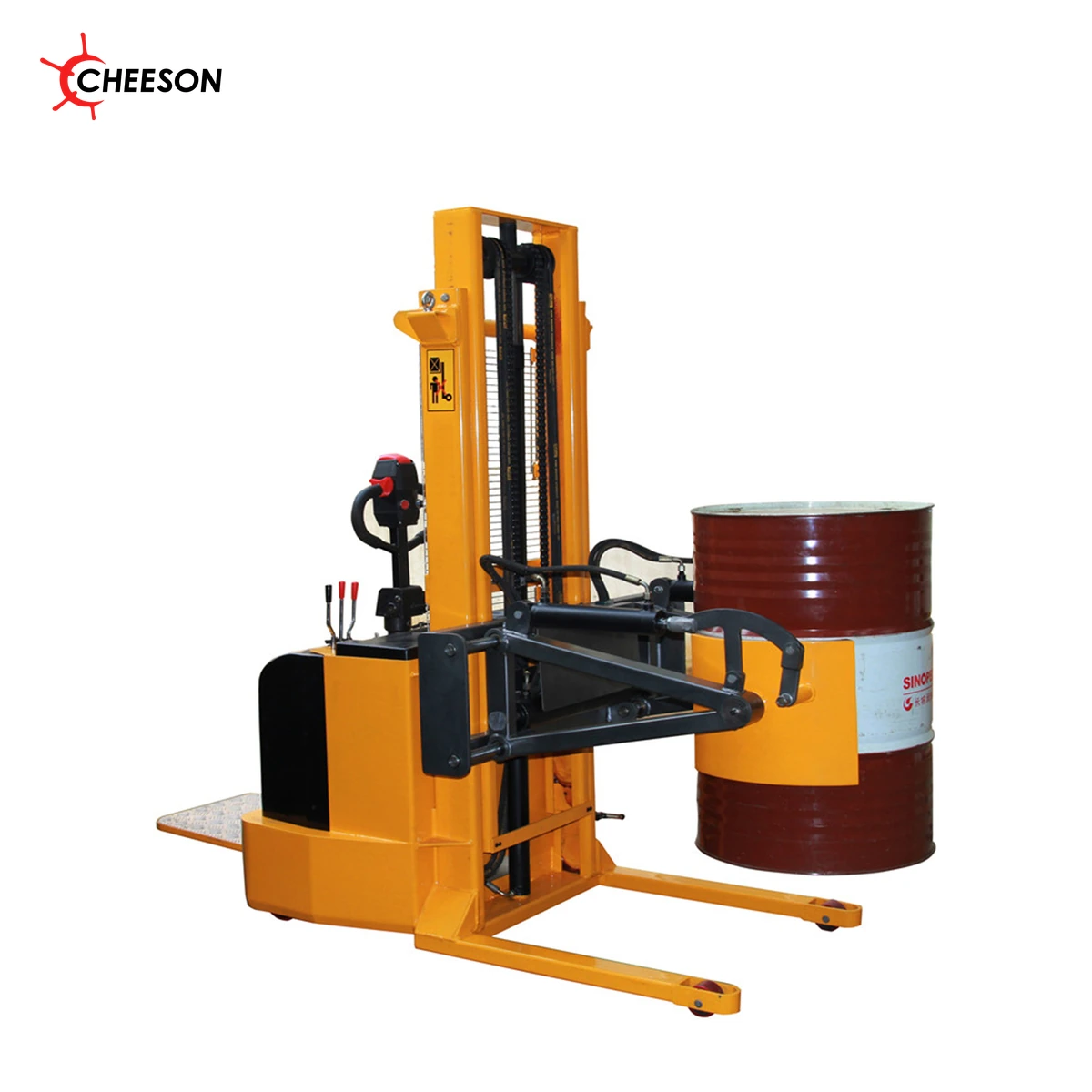

The CHEESON YL600 full-electric drum-handler range comprises YL600, YL600A and YL600B. The latest supplied table lists 600 kg load capacity and 2,400 mm lifting height for all three entries. It differentiates overall dimensions, turning radius, net weight and rotation information. The source also records drive/lift motor, brake and wheel specifications.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | YL600 | YL600A | YL600B |
|---|---|---|---|---|---|
| Drive Type | — | — | Electric | Electric | Full Electric |
| Operating Type | — | — | Stand-On Steering | Stand-On | Stand-On Steering |
| Load Capacity | — | kg | 600 | 600 | 600 |
| Lifting Height | — | mm | 2400 | 2400 | 2400 |
| Overall Height | — | mm | 1870 | 1870 | 1870 |
| Overall Length | — | mm | 2290 | 2360 | 2050 |
| Overall Width | — | mm | 1180 | 1030 | 980 |
| Turning Radius | — | mm | 1840 | 1910 | 1710 |
| Max. Gradeability, Laden / Unladen | — | % | 3 / 5 | 3 / 5 | 3 / 5 |
| Brake Type | — | — | Electromagnetic | Electromagnetic | Electromagnetic |
| Noise Level | — | dB(A) | <70 | <70 | <70 |
| Drum Rotation Range | — | ° | 175 | 360 | — |
| Drive Wheel Size | — | mm | Ø250×80 | Ø250×80 | Ø250×80 |
| Tyre Material | — | — | Polyurethane | Polyurethane | Polyurethane |
| Drive Motor Power | — | kW | 1.2 | 1.2 | 1.2 |
| Lift Motor Power | — | kW | 2.2 | 2.2 | 2.2 |
| Charger | — | V/Ah | 24 / 200 | 24 / 200 | 24 / 200 |
| Battery Voltage / Capacity | — | V/Ah | 24 / 20 | 24 / 20 | 24 / 20 |
| Net Weight | — | kg | 890 | 692 | 635 |
Download the editable English specification
Selecting a configuration
Provide drum size, rim geometry, gross weight, lift height and the required rotation function. Confirm the quoted battery and charger package because these fields need configuration-specific checking. The blank YL600B rotation entry has not been replaced with a value from another model.
Frequently asked questions
Which models are included in this series?
YL600, YL600A, YL600B. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
