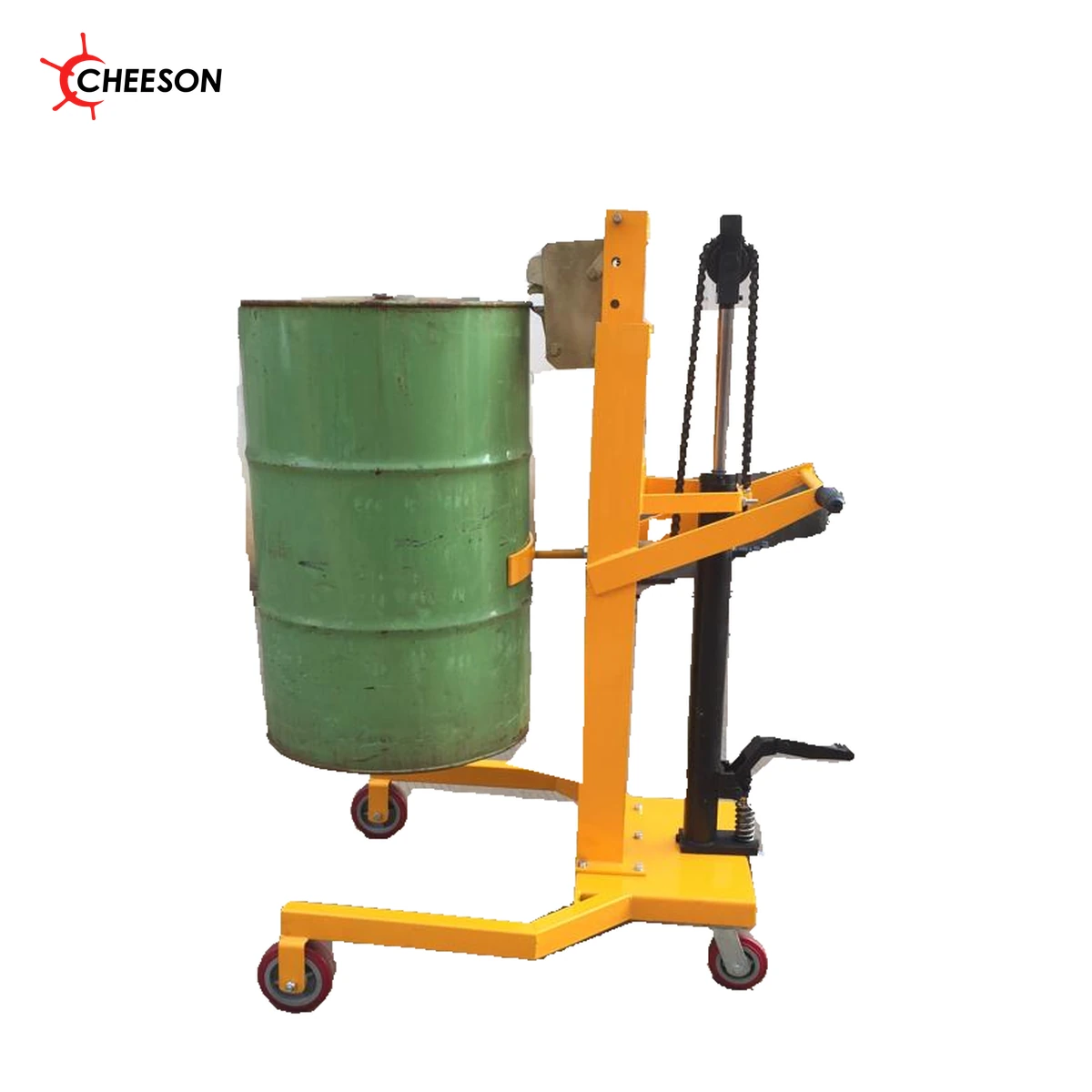

CHEESON DTF hydraulic drum trucks are listed as DTF450A, DTF450A-1, DTF450B, DTF450B-1, DTF450C and DTF450C-1. The supplied table gives a 450 kg rated load across these entries, with 600 mm lift height for the A/B groups and 1,100 mm for the C group. Weights, supporting-leg dimensions and some equipment entries vary between versions.
Models and specifications
Specifications vary by configuration. Contact CHEESON to confirm unspecified details before ordering.
Specification
| Parameter | Symbol | Unit | DTF450A | DTF450A-1 | DTF450B | DTF450B-1 | DTF450C | DTF450C-1 |
|---|---|---|---|---|---|---|---|---|
| Rated load | — | kg | 450 | 450 | 450 | 450 | 450 | 450 |
| Net weight | — | kg | 103 | 120 | 105 | 122 | 130 | 135 |
| Hydraulic lifting | — | — | V | √ | V | √ | √ | √ |
| Equipped | — | — | — | √ | — | √ | — | √ |
| Lifting height | — | mm | 600 | 600 | 600 | 600 | 1100 | 1100 |
| Specification of front wheel(PU wheel) | — | mm | C150*50 | c150*50 | C150*50 | 150*50 | c150*50 | C150*50 |
| Specification of rear wheel(PU wheel) | — | mm | c125x50 | 125×50 | C 125×50 | c 125×50 | 125×50 | 125×50 |
| Inner and outer width of front supporting leg | — | mm | 670、850 | 670、850 | 920、1140 | 920、1140 | 920、1140 | 920、1140 |
| Length of front leg | — | mm | 600 | 600 | 500 | 500 | 500 | 500 |
| Complete dimension(length*width*height) | — | mm | 1080x850x1370 | 1080x850x1370 | 1140x950x1370 | 1140x950x1370 | 1140x950x1870 | 1140x950x1870 |
| Charger of weighing display | — | V | — | 6 | — | 6 | — | 6 |
Download the editable English specification
Selecting a configuration
Specify drum gross weight, diameter, height, base access and required lifting position. Use the complete suffix when comparing an A, B or C version. Unclear source equipment labels are preserved without inventing a feature; confirm any weighing equipment in the quotation.
Frequently asked questions
Which models are included in this series?
DTF450A, DTF450A-1, DTF450B, DTF450B-1, DTF450C, DTF450C-1. Confirm the complete model and configuration when requesting a quotation.
Do the photographs represent every capacity or height option?
Photographs represent the product series. Capacity, dimensions and equipment are defined by the selected specification, not by the representative image.
What information is required for a quotation?
Send the complete model or required load, dimensions, operating requirements, quantity and destination. Confirm the exact configuration against the current technical sheet.
